DB UnlimitedUnited States

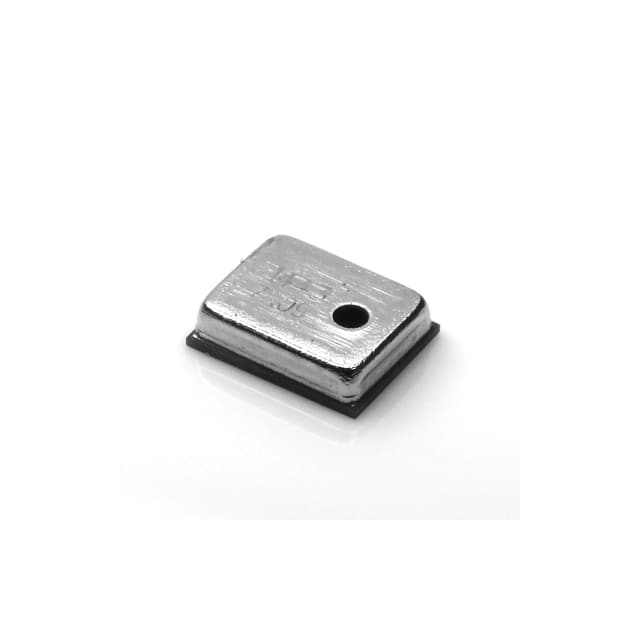

MICROPHONE MEMS DIGITAL OMNI
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Supply | 800 µA |
| Voltage - Rated | 2.1 V |
| AC and DC characteristics | |
| Frequency Range | 100 Hz ~ 7 kHz |
| Environment and package | |
| Package | Tape & Reel (TR) |
| Size / Dimension | 0.186" L x 0.148" W (4.72mm x 3.76mm) |
| Other | |
| Direction | Omnidirectional |
| Mfr | DB Unlimited |
| Output Type | Digital |
| Port Location | Top |
| Product Status | Active |
| Ratings | - |
| Sensitivity | -26dB ±3dB |
| Series | - |
| Shape | Rectangular |
| S/N Ratio | 58dB |
| Termination | Solder Pads |
| Type | MEMS (Silicon) |
Documents
No documents are linked to this part yet.
