onsemiUnited States

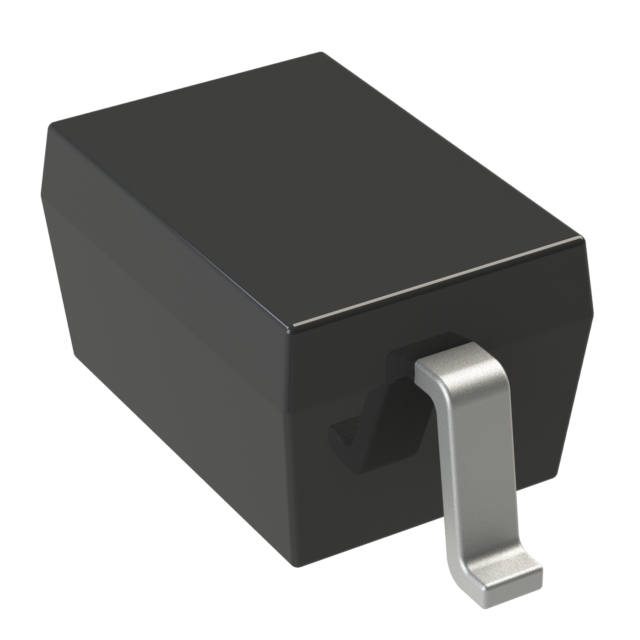

DIODE ZENER 12V 300MW SOD323
All alternatives
View full reportTechnical parameters
Key specs
Zener voltage12 V
Tolerance2 %
Power300 mWMax
Zener impedance25 ΩMax
| Power | |
|---|---|
| Current - Reverse Leakage @ Vr | 100 nA @ 8 V |
| Power - Max | 300 mW |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA |
| Voltage - Zener (Nom) (Vz) | 12 V |
| AC and DC characteristics | |
| Impedance (Max) (Zzt) | 25 Ohms |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Package / Case | SC-76, SOD-323 |
| Supplier Device Package | SOD-323 |
| Other | |
| Base Product Number | MM3Z12 |
| Mfr | onsemi |
| Packaging | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Part Status | Active |
| Series | - |
| Tolerance | ±2% |
