Nexperia USA Inc.Netherlands
Voltage regulator diodes
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Halogen free | Yes |

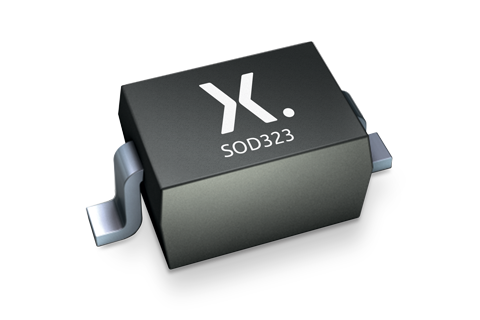

| Package name | SOD323 |
| Package version | SOD323 |
| RoHS | Compliant |
| Size | 1.7 x 1.25 x 0.95 |
| Other | |
| Configuration | single |
| IF [max] | 200 |
| IZ | 5 |
| Ptot | 300 |
| PZSM | 40 |
| TJ [max] | 150 |
| Tolerance +/- | 0.05 |
| VZ [max] | 12.6 |
| VZ [min] | 11.42 |
| VZ [nom] | 12.01 |
