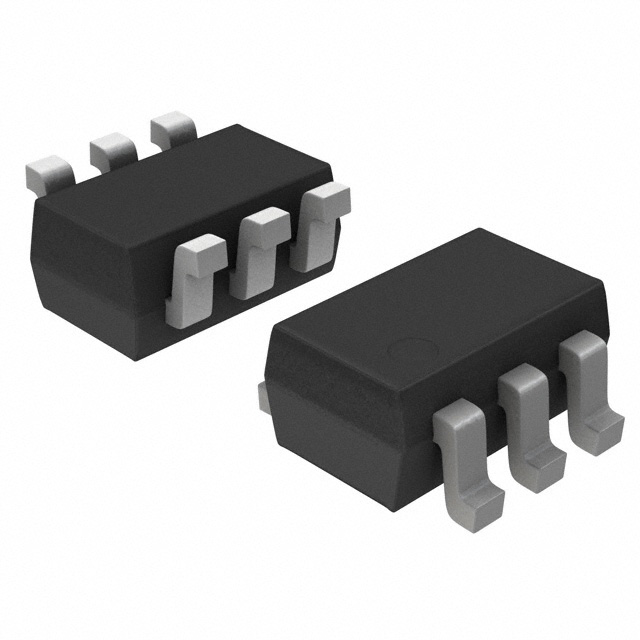

DIODE ARRAY GP 80V 250MA SOT363
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Average Rectified (Io) (per Diode) | 250mA |
| Current - Reverse Leakage @ Vr | 100 nA @ 70 V |
| Voltage - DC Reverse (Vr) (Max) | 80 V |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 150 mA |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | 150°C(Max) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SOT-363 |
| Other | |
| Base Product Number | MMBD4448 |
| Diode Configuration | 3 Independent |
| Diode Type | Standard |
| Mfr | Micro Commercial Co |
| Product Status | Active |
| Reverse Recovery Time (trr) | 4 ns |
| Series | - |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
