SMALL SIGNAL TRANSISTOR
All alternatives
View full reportTechnical parameters
Key specs
TypeNPN
Collector-emitter voltage40 V
Collector current600 mAMax
DC current gain100150mA
Power300 mWMax
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 10nA |
| Current - Collector (Ic) (Max) | 600 mA |
| Power - Max | 300 mW |
| Voltage - Collector Emitter Breakdown (Max) | 40 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 150mA, 10V |
| Frequency - Transition | 300MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C(TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | - |

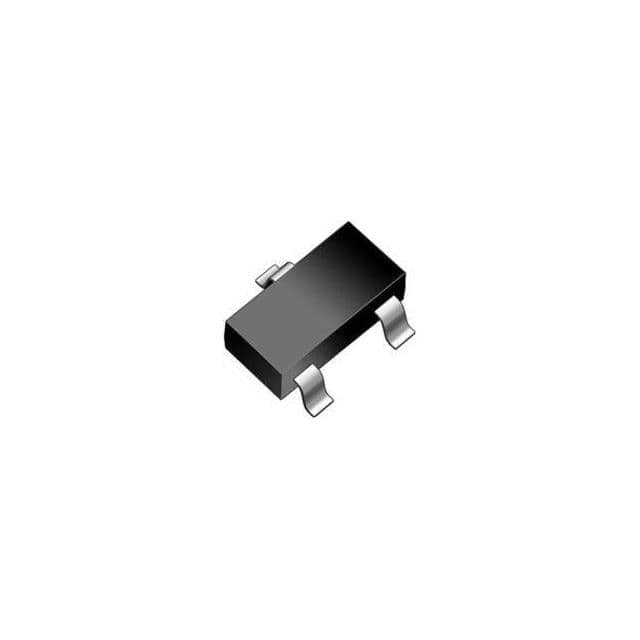

| Supplier Device Package | SOT-23 |
| Other | |
| Mfr | HY Electronic (Cayman) Limited |
| Product Status | Active |
| Series | MMBT |
| Transistor Type | NPN |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 50mA, 500mA |
