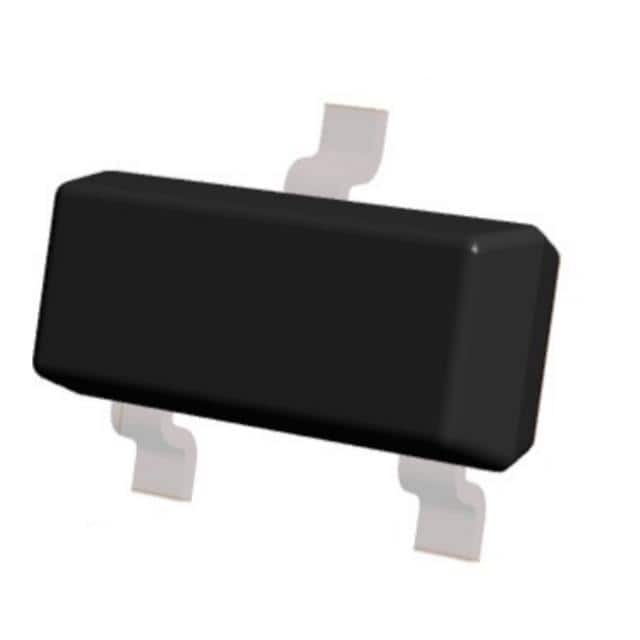

MMBT2907A
Yangjie TechnologyChina

MMBT2907A

ActiveTransistors - Bipolar (BJT) - SingleSOT-23

SOT-23 PNP 0.3W 0.6A 60V Transis

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

TypePNP
Collector-emitter voltage60 V
Collector current600 mAMax
DC current gain100150mA
Power350 mWMax
Power
Current - Collector Cutoff (Max)50nA
Current - Collector (Ic) (Max)600 mA
Power - Max350 mW
Voltage - Collector Emitter Breakdown (Max)60 V
AC and DC characteristics
DC Current Gain (hFE) (Min) @ Ic, Vce100 @ 150mA, 10V
Frequency - Transition200MHz
Environment and package
Mounting TypeSurface Mount
Operating Temperature-55°C~150°C(TJ)
PackageTape & Reel (TR)
Package / CaseTO-236-3, SC-59, SOT-23-3
Supplier Device PackageSOT-23
Other
MfrYangjie Technology
Product StatusActive
Series-
Transistor TypePNP
Vce Saturation (Max) @ Ib, Ic1.6V @ 50mA, 500mA
