onsemiUnited States

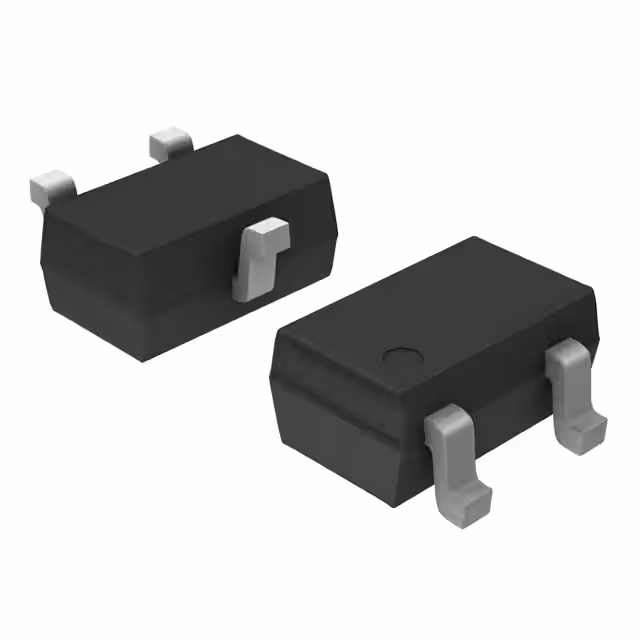

TRANS PNP 60V 0.6A SC70-3
All alternatives
View full reportTechnical parameters
Key specs
TypePNP
Collector-emitter voltage60 V
Collector current600 mAMax
DC current gain100150mA
Power150 mWMax
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | - |
| Current - Collector (Ic) (Max) | 600 mA |
| Power - Max | 150 mW |
| Voltage - Collector Emitter Breakdown (Max) | 60 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 150mA, 10V |
| Frequency - Transition | 200MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | SC-70, SOT-323 |
| Supplier Device Package | SC-70-3 (SOT323) |
| Other | |
| Base Product Number | MMBT2907 |
| Mfr | onsemi |
| Product Status | Active |
| Series | - |
| Transistor Type | PNP |
| Vce Saturation (Max) @ Ib, Ic | 1.6V @ 50mA, 500mA |
