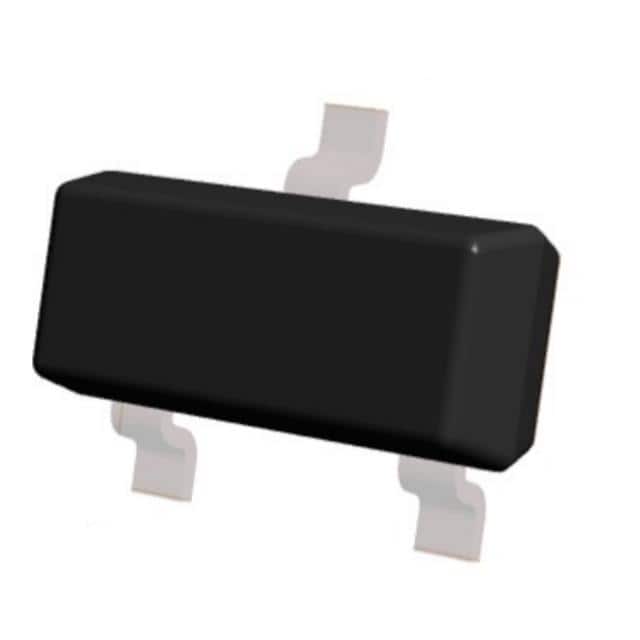

MMBT4403
Yangjie TechnologyChina

MMBT4403

ActiveTransistors - Bipolar (BJT) - SingleSOT-23

SOT-23 PNP 0.3W -0.6A -40V Trans

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

TypePNP
Collector-emitter voltage40 V
Collector current600 mAMax
DC current gain100150mA
Power350 mWMax
Power
Current - Collector Cutoff (Max)100nA
Current - Collector (Ic) (Max)600 mA
Power - Max350 mW
Voltage - Collector Emitter Breakdown (Max)40 V
AC and DC characteristics
DC Current Gain (hFE) (Min) @ Ic, Vce100 @ 150mA, 2V
Frequency - Transition200MHz
Environment and package
Mounting TypeSurface Mount
Operating Temperature-55°C~150°C
PackageTape & Reel (TR)
Package / CaseTO-236-3, SC-59, SOT-23-3
Supplier Device PackageSOT-23
Other
MfrYangjie Technology
Product StatusActive
Series-
Transistor TypePNP
Vce Saturation (Max) @ Ib, Ic750mV @ 50mA, 500mA
