MDDGermany

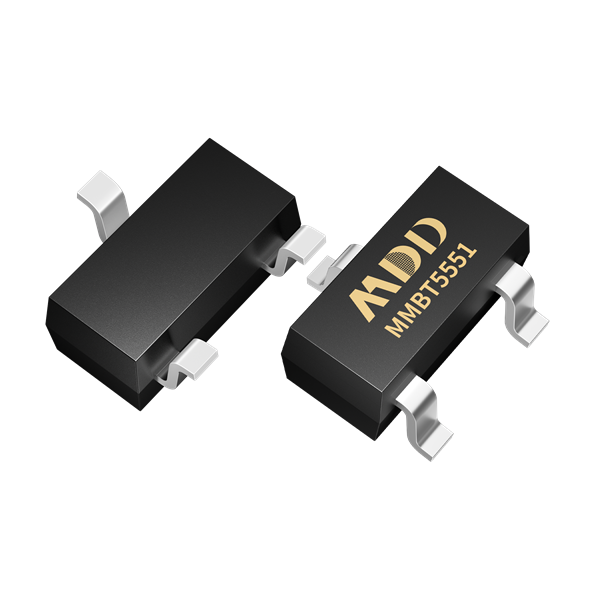

TRANS NPN 160V 0.6A SOT23
All alternatives
View full reportTechnical parameters
Key specs
TypeNPN
Collector-emitter voltage160 V
Collector current600 mAMax
DC current gain10010mA
Power300 mWMax
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 50nA (ICBO) |
| Current - Collector (Ic) (Max) | 600 mA |
| Power - Max | 300 mW |
| Voltage - Collector Emitter Breakdown (Max) | 160 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 10mA, 5V |
| Frequency - Transition | 300MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23 |
| Other | |
| Mfr | MDD |
| Product Status | Active |
| Series | SOT-23 |
| Transistor Type | NPN |
| Vce Saturation (Max) @ Ib, Ic | 200mV @ 5mA, 50mA |
