onsemiUnited States

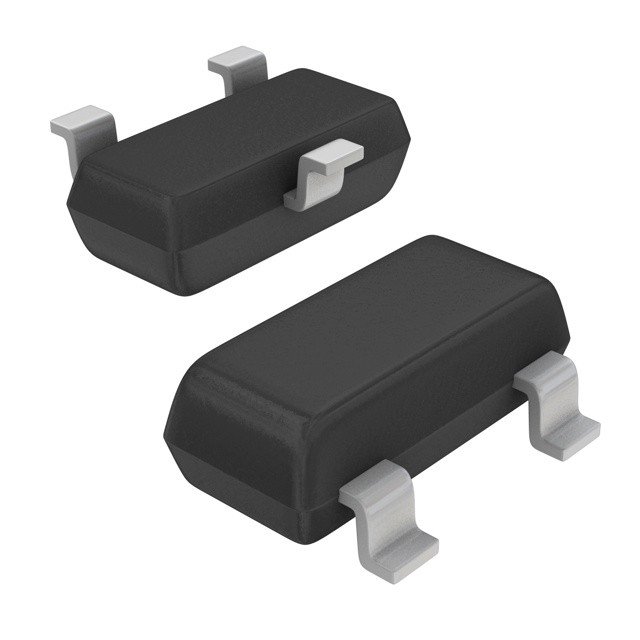

TRANS NPN 80V 0.5A SOT23-3
All alternatives
View full reportTechnical parameters
Key specs
TypeNPN
Collector-emitter voltage80 V
Collector current500 mAMax
DC current gain100100mA
Power225 mWMax
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 100nA |
| Current - Collector (Ic) (Max) | 500 mA |
| Power - Max | 225 mW |
| Voltage - Collector Emitter Breakdown (Max) | 80 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 100mA, 1V |
| Frequency - Transition | 100MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 (TO-236) |
| Other | |
| Base Product Number | MMBTA06 |
| Mfr | onsemi |
| Product Status | Active |
| Series | - |
| Transistor Type | NPN |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 10mA, 100mA |
