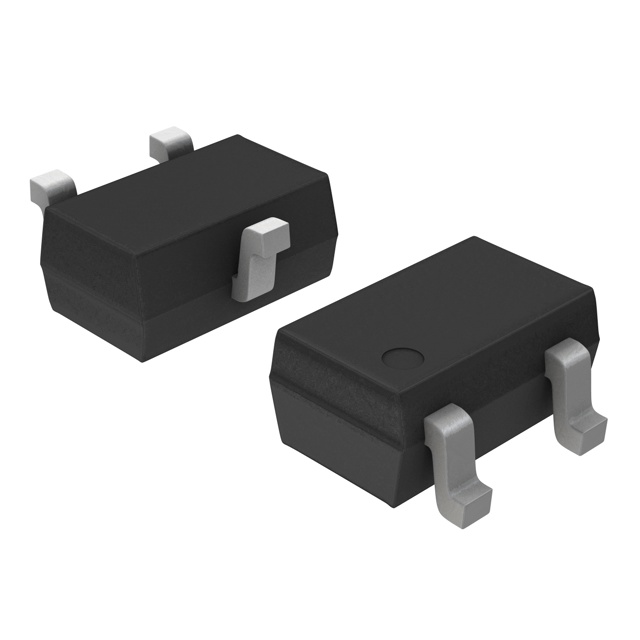

TRANS PNP 80V 0.5A SC70-3
All alternatives
View full reportTechnical parameters
Key specs
TypePNP
Collector-emitter voltage80 V
Collector current500 mAMax
DC current gain100100mA
Power150 mWMax
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 100nA |
| Current - Collector (Ic) (Max) | 500 mA |
| Power - Max | 150 mW |
| Voltage - Collector Emitter Breakdown (Max) | 80 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 100mA, 1V |
| Frequency - Transition | 50MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | SC-70, SOT-323 |
| Supplier Device Package | SC-70-3 (SOT323) |
| Other | |
| Base Product Number | MMBTA56 |
| Mfr | onsemi |
| Product Status | Obsolete |
| Series | - |
| Transistor Type | PNP |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 10mA, 100mA |
