Yangjie TechnologyChina

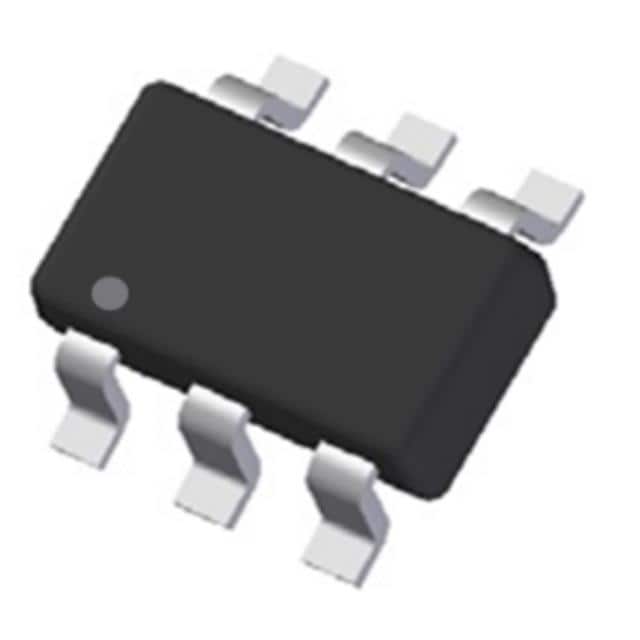

SOT-363 NPN+NPN 0.2W 0.6A 75V Tr
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 10nA |
| Current - Collector (Ic) (Max) | 600mA |
| Power - Max | 150mW |
| Voltage - Collector Emitter Breakdown (Max) | 40V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 150mA, 10V |
| Frequency - Transition | 300MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C |
| Package | Tape & Reel (TR) |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SOT-363 |
| Other | |
| Mfr | Yangjie Technology |
| Product Status | Active |
| Series | - |
| Transistor Type | 2 NPN (Dual) |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 50mA, 500mA |
