Diodes IncorporatedUnited States

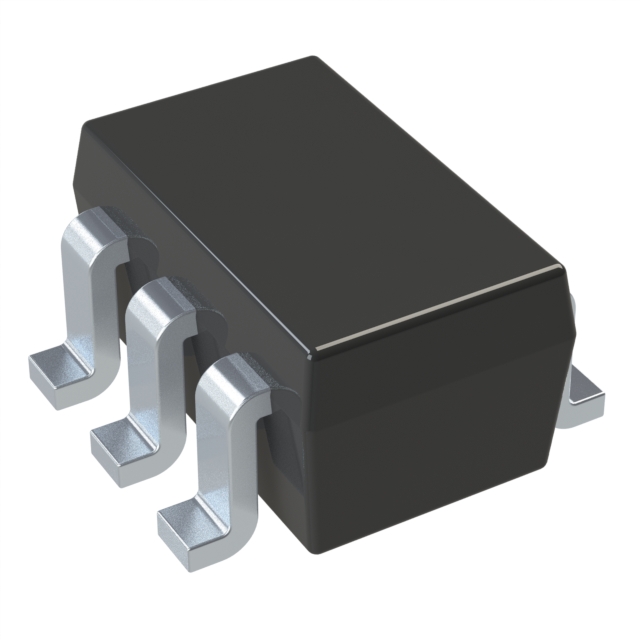

General Purpose Transistor SOT36
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 50nA |
| Current - Collector (Ic) (Max) | 200mA |
| Power - Max | 200mW |
| Voltage - Collector Emitter Breakdown (Max) | 40V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 10mA, 1V |
| Frequency - Transition | 300MHz, 250MHz |
| Environment and package | |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Package | Bulk |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Qualification | AEC-Q101 |
| Supplier Device Package | SOT-363 |
| Other | |
| Base Product Number | MMDT3946 |
| Mfr | Diodes Incorporated |
| Product Status | Active |
| Series | - |
| Transistor Type | NPN, PNP Complementary |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 5mA, 50mA / 400mV @ 5mA, 50mA |
