Yangjie TechnologyChina

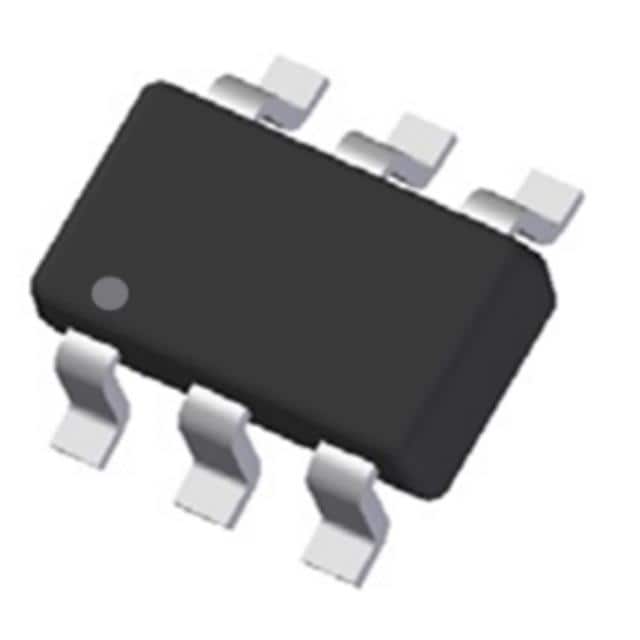

SOT-363 PNP+PNP 0.2W -0.6A -160V
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 50nA (ICBO) |
| Current - Collector (Ic) (Max) | 200mA |
| Power - Max | 200mW |
| Voltage - Collector Emitter Breakdown (Max) | 150V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 10mA, 5V |
| Frequency - Transition | 300MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C |
| Package | Tape & Reel (TR) |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SOT-363 |
| Other | |
| Mfr | Yangjie Technology |
| Product Status | Active |
| Series | - |
| Transistor Type | 2 PNP (Dual) |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 5mA, 50mA |
