Diodes IncorporatedUnited States
DIODE ZENER 2.4V 200MW SOD323
All alternatives
View full reportTechnical parameters
Key specs
Zener voltage2.4 V
Tolerance5 %
Power200 mWMax
Zener impedance30 ΩMax
| Power | |
|---|---|
| Current - Reverse Leakage @ Vr | 100 µA @ 1 V |
| Power - Max | 200 mW |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA |
| Voltage - Zener (Nom) (Vz) | 2.4 V |
| AC and DC characteristics | |
| Impedance (Max) (Zzt) | 30 Ohms |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C~150°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

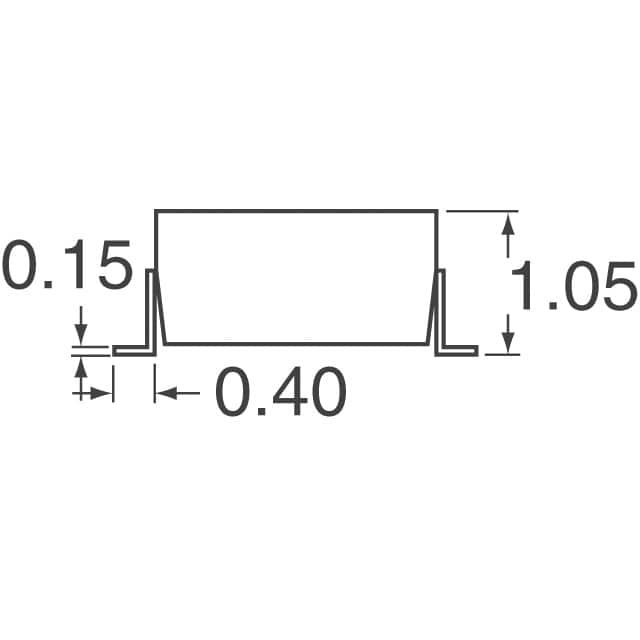

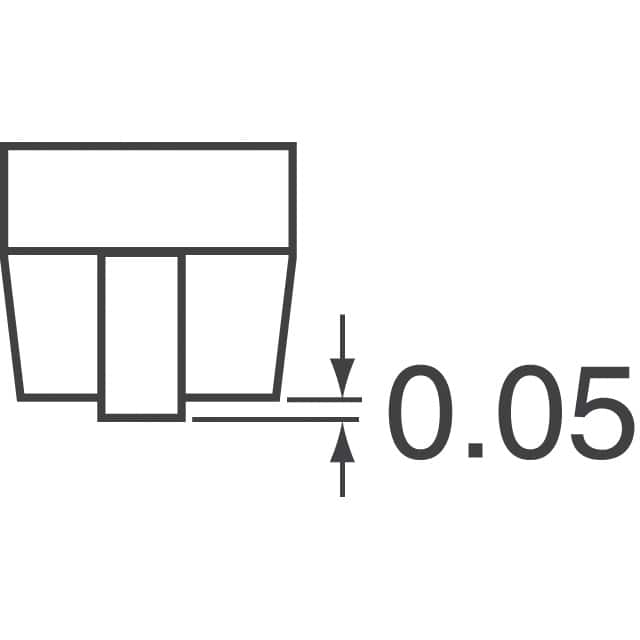

| Package / Case | SC-76, SOD-323 |
| Supplier Device Package | SOD-323 |
| Other | |
| Base Product Number | MMSZ5221 |
| Mfr | Diodes Incorporated |
| Product Status | Active |
| Series | - |
| Tolerance | ±5% |
