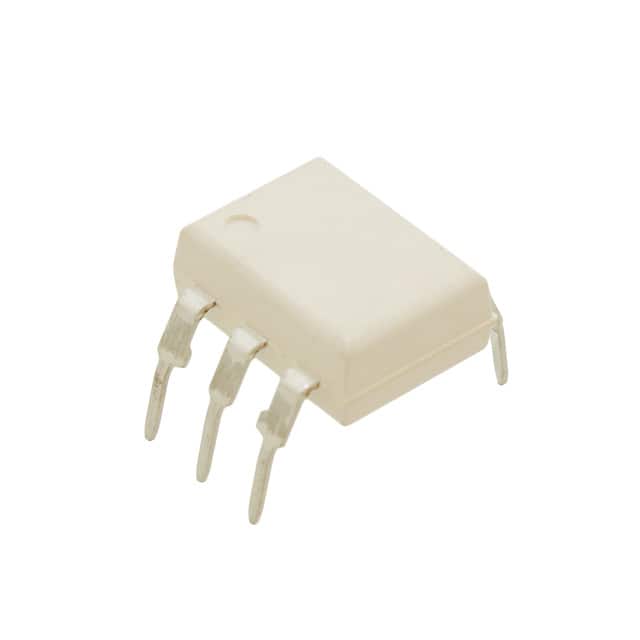

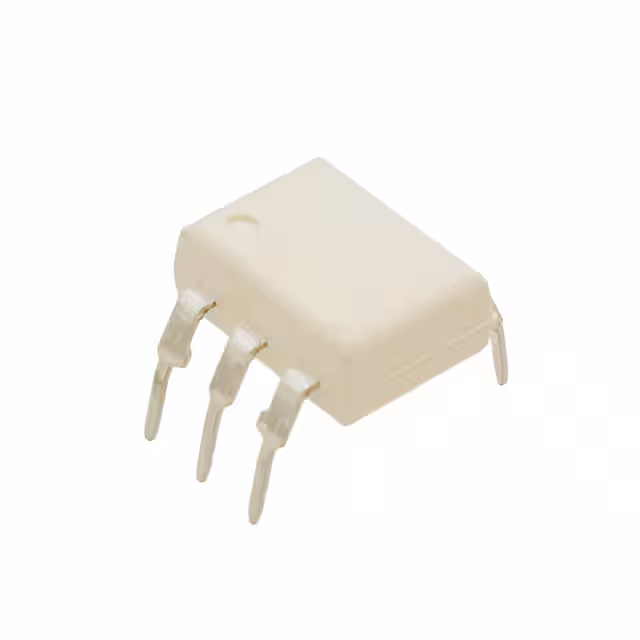

OPTOISOLATOR 4.17KV TRIAC 6DIP
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - DC Forward (If) (Max) | 60 mA |
| Current - Hold (Ih) | 220µA (Typ) |
| Current - LED Trigger (Ift) (Max) | 10mA |
| Number of Channels | 1 |
| Voltage - Forward (Vf) (Typ) | 1.18V |
| Voltage - Isolation | 4170Vrms |
| Voltage - Off State | 600 V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~85°C |
| Package | Bulk |
| Package / Case | 6-DIP (0.400", 10.16mm) |
| Supplier Device Package | 6-DIP |
| Other | |
| Approval Agency | UR, VDE |
| Base Product Number | MOC305 |
| Mfr | onsemi |
| Output Type | Triac |
| Product Status | Obsolete |
| Series | - |
| Static dV/dt (Min) | 1kV/µs |
| Turn On Time | - |
| Zero Crossing Circuit | No |
