ARTESYN / Advanced EnergyUnited States

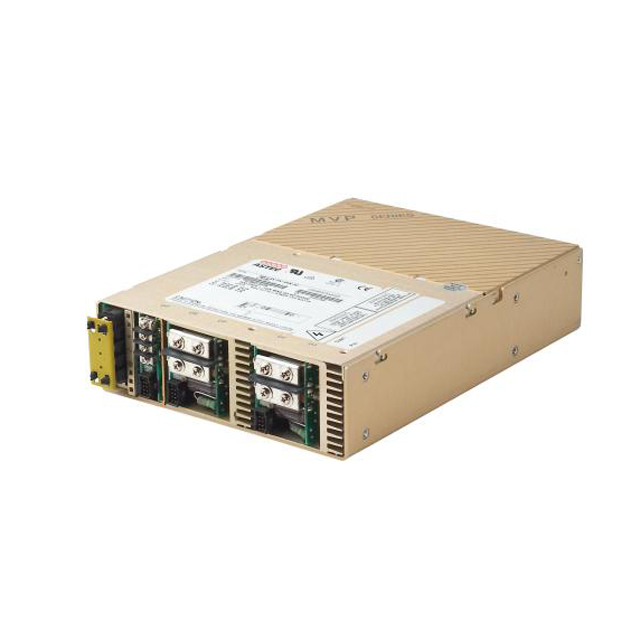

MP1-1E-1N-1N-1P-1Q-1Q-1U-00
AC DC ConvertersAC/DC CNVT 5V 2X15V 20V 2X24V
All alternatives
View full reportTechnical parameters
Key specs
Input voltage85 ~ 264 V
Output voltage5 V
Output current35 AMax
Power1.2 kWMax
Outputs7
| Power | |
|---|---|
| Current - Output 1 | 35 A |
| Current - Output 2 | 14 A |
| Current - Output 3 | 14 A |
| Current - Output 4 | 10.5 A |
| Current - Output 5 | 8.5 A |
| Current - Output 6 | 8.5 A |
| Power (Watts) | 1200W |
| Voltage - Input | 85 ~ 264 VAC, 120 ~ 300 VDC |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 15V |
| Voltage - Output 3 | 15V |
| Voltage - Output 4 | 20V |
| Voltage - Output 5 | 24V |
| Voltage - Output 6 | 24V |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Size / Dimension | 11.00" L x 8.00" W x 2.50" H (279.4mm x 203.2mm x 63.5mm) |
| Other | |
| Applications | ITE (Commercial), Medical |
| Approval Agency | CB, CE, CSA, UL, VDE |
| Efficiency | 85% |
| Features | Adjustable Output, PFC, Remote Sense, Standby Output, Universal Input |
| Mfr | ARTESYN / Advanced Energy |
| Minimum Load Required | - |
| Number of Outputs | 7 |
| Packaging | Bulk |
| Part Status | Obsolete |
| Series | MP1 (1200W) |
| Type | Enclosed |
