NXP USA Inc.Netherlands

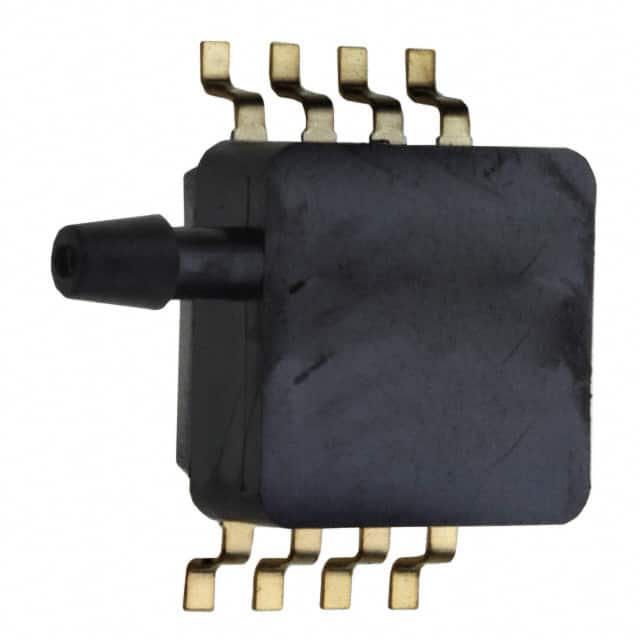

IC PRESSURE SENSOR 8-SOP
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - Supply | 2.7V ~ 3.3V |
| AC and DC characteristics | |
| Accuracy | ±2.5% |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C |
| Package | Tray |
| Package / Case | 8-SMD, Gull Wing, Side Port |
| Port Size | Male - 0.13" (3.17mm) Tube |
| Supplier Device Package | 8-SOP |
| Other | |
| Applications | Board Mount |
| Base Product Number | MP3V5050 |
| Features | Temperature Compensated |
| Maximum Pressure | 29.01PSI (200kPa) |
| Mfr | NXP USA Inc. |
| Operating Pressure | 7.25PSI (50kPa) |
| Output | 0.06 V ~ 2.82 V |
| Output Type | Analog Voltage |
| Port Style | Barbless |
| Pressure Type | Vented Gauge |
| Product Status | Active |
| Series | MP3V5050 |
| Termination Style | Gull Wing |
