ARTESYN / Advanced EnergyUnited States

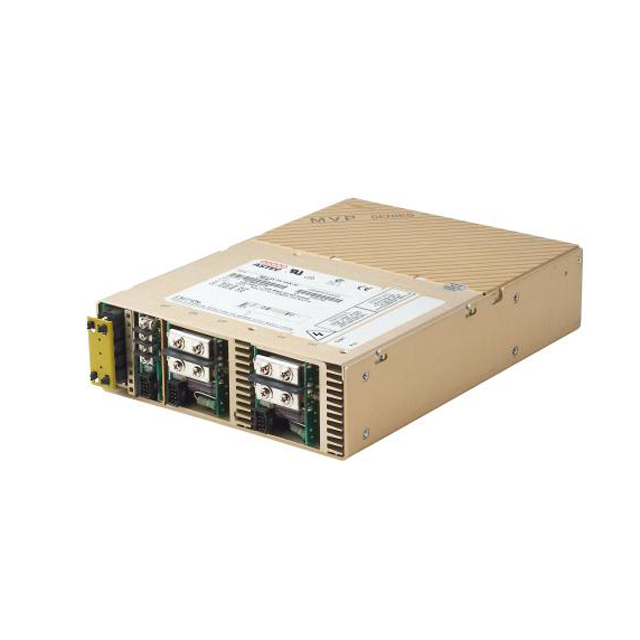

MP6-3D-4LL-LLE-0M
AC DC ConvertersAC/DC CONVERTER 3.3V 5X12V 800W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage85 ~ 264 V
Output voltage3.3 V
Output current120 AMax
Power800 WMax
Outputs6
| Power | |
|---|---|
| Current - Output 1 | 120 A |
| Current - Output 2 | 10 A |
| Current - Output 3 | 4 A |
| Current - Output 4 | 1 A |
| Current - Output 5 | 1 A |
| Current - Output 6 | 2 A |
| Power (Watts) | 800W |
| Voltage - Input | 85 ~ 264 VAC, 120 ~ 300 VDC |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | 12V |
| Voltage - Output 3 | 12V |
| Voltage - Output 4 | 12V |
| Voltage - Output 5 | 12V |
| Voltage - Output 6 | 12V |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Size / Dimension | - |
| Other | |
| Applications | ITE (Commercial), Medical |
| Approval Agency | CB, CE, CSA, UL, VDE |
| Efficiency | 85% |
| Features | Adjustable Output, PFC, Remote On/Off, Universal Input |
| Mfr | ARTESYN / Advanced Energy |
| Minimum Load Required | - |
| Number of Outputs | 6 |
| Packaging | Bulk |
| Part Status | Obsolete |
| Series | MP6 (800W) |
| Type | Enclosed |
