MPM3630GQV-Z

ActiveDC DC ConvertersQFN-20

DC DC CONVERTER 0.6-18V

MPM3630GQV-Z is an 18V/3A synchronous step-down DC-DC module with integrated inductor and MOSFETs in QFN-20 (3x5x1.6mm) package, supporting 4.5V-18V input with OCP and thermal protection.Checked against the datasheet

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

Input voltage4.5 ~ 18 V
Output voltage600 mV
Output current3 AMax
IsolationNon-isolated

Datasheet-verified parameters

24 items
ParameterValue and test conditionsSource
Input Voltage Range4.5V to 18V
Output VoltageAdjustable from 0.6V
Output Current3A Continuous
PackageQFN-20 (3mmx5mmx1.6mm)
Operating Temperature-40°C to +125°C
RoHSCompliant
Halogen FreeYes
Switching Frequency1100 kHz (Min) / 1400 kHz (Typ) / 1600 kHz (Max) @ VFB=0.5V
Quiescent Current320 μA (Typ) / 420 μA (Max) @ VFB=0.7V
Shutdown Supply Current5.5 μA (Typ) / 8 μA (Max) @ VEN=0V
HS Switch On Resistance50 mΩ (Typ) @ VBST-SW=5V
LS Switch On Resistance22 mΩ (Typ) @ VCC=5V
Inductor DC Resistance40 mΩ (Typ)
Current Limit5 A (Min) / 6.5 A (Typ) @ 30% Duty cycle
Feedback Voltage591 mV (Min) / 600 mV (Typ) / 609 mV (Max)
EN Rising Threshold1.2 V (Min) / 1.4 V (Typ) / 1.6 V (Max)
EN Falling Threshold1.1 V (Min) / 1.25 V (Typ) / 1.4 V (Max)
VIN Under-Voltage Lockout Threshold (Rising)3.9 V (Min) / 4.1 V (Typ) / 4.3 V (Max)
Thermal Shutdown150 °C (Typ)
Thermal Hysteresis20 °C (Typ)
Soft-Start Time2.2 ms (Typ) @ VOUT from 10% to 90%
Absolute Maximum VIN-0.3V to 20V
Absolute Maximum VOUT-0.3V to 20V
Storage Temperature-65°C to 150°C
All parameters (23)ExpandCollapse
Power
Current - Output (Max)3A
Voltage - Input (Max)18V
Voltage - Input (Min)4.5V
Voltage - Output 10.6 ~ 18V
Voltage - Output 2-
Voltage - Output 3-
Voltage - Output 4-
Environment and package
Mounting TypeSurface Mount
Operating Temperature-40°C ~ 125°C
PackageTape & Reel (TR) Cut Tape (CT) Digi-Reel®
Package / Case20-PowerLFQFN Module
Size / Dimension0.20" L x 0.12" W x 0.06" H (5.0mm x 3.0mm x 1.6mm)
Supplier Device Package20-QFN (3x5)
Other
ApplicationsITE (Commercial)
Base Product NumberMPM3630
Control Features-
Efficiency-
FeaturesOCP, OTP, UVLO
MfrMonolithic Power Systems Inc.
Number of Outputs1
Product StatusActive
Series-
TypeNon-Isolated PoL Module

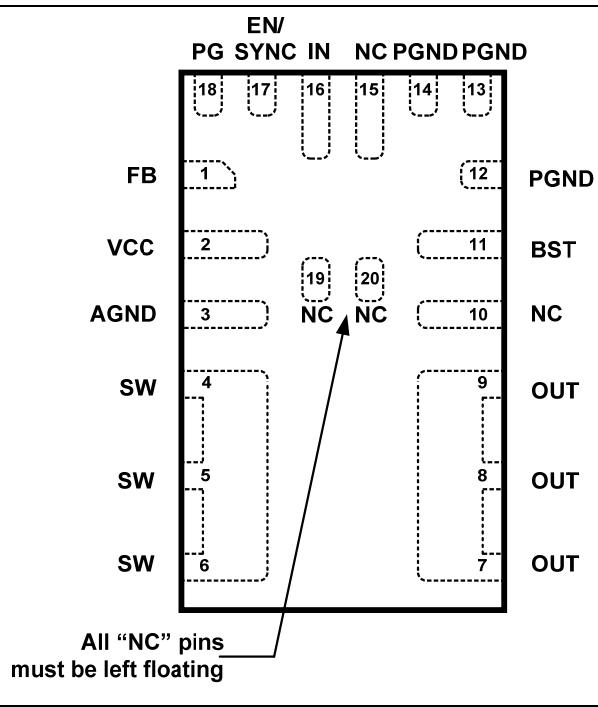

Pinout and package

PackageQFN-20 (3mmx5mmx1.6mm)

PinNameFunctionSource
1FB- Feedback. Connect to the tap of an external resistor divider to set the output voltage.
2VCC- Internal 5V LDO output. No external capacitor needed.
3AGND- Analog ground. Reference ground of the logic circuit. Connect to PGND on PCB layout.
11BST- Bootstrap. Bootstrap capacitor is integrated internally. No external connections needed.
16IN- Supply voltage. Supplies power for the internal MOSFET and regulator.
17EN/SYNC- Enable/Sync. High to enable, apply external clock to change frequency.
18PG- Power good indicator. Open drain structure.
10, 15, 19, 20NC- DO NOT CONNECT. Must be left floating.
12, 13, 14PGND- Power ground. Reference ground of the power device.
4, 5, 6SW- Switch Output. No connection needed, large copper plane recommended for heat sink.
7, 8, 9OUT- Power output. Connect the load to OUT. An output capacitor is needed.
