Monolithic Power Systems Inc.United States

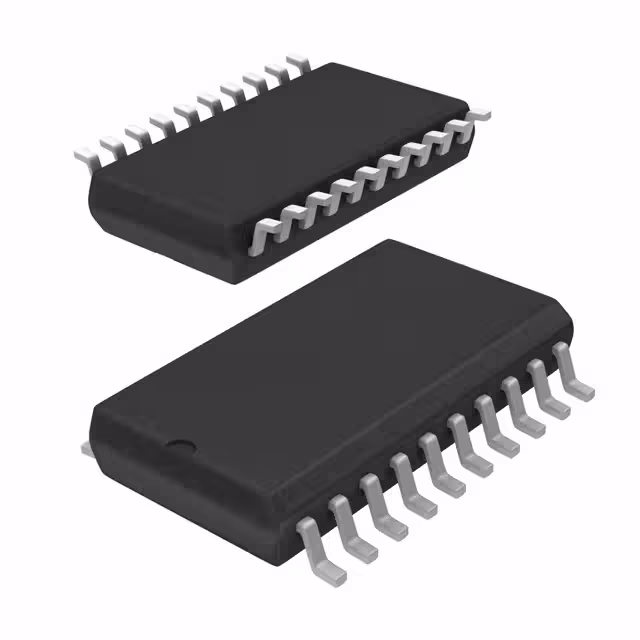

IC OFFLINE SWITCH FLYBACK 20SOIC
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power (Watts) | 2.3 W |
| Voltage - Breakdown | - |
| Voltage - Supply (Vcc/Vdd) | 9V ~ 24V |
| AC and DC characteristics | |
| Frequency - Switching | 85kHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C(TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SOIC |
| Other | |
| Base Product Number | MPX2001 |
| Control Features | EN, Frequency Control, Soft Start, Sync |
| Duty Cycle | 50% |
| Fault Protection | Current Limiting, Over Load, Over Power, Over Temperature, Over Voltage, Short Circuit |
| Internal Switch(s) | No |
| Mfr | Monolithic Power Systems Inc. |
| Output Isolation | Isolated |
| Product Status | Active |
| Series | - |
| Topology | Flyback |
