Inventus PowerUnited States

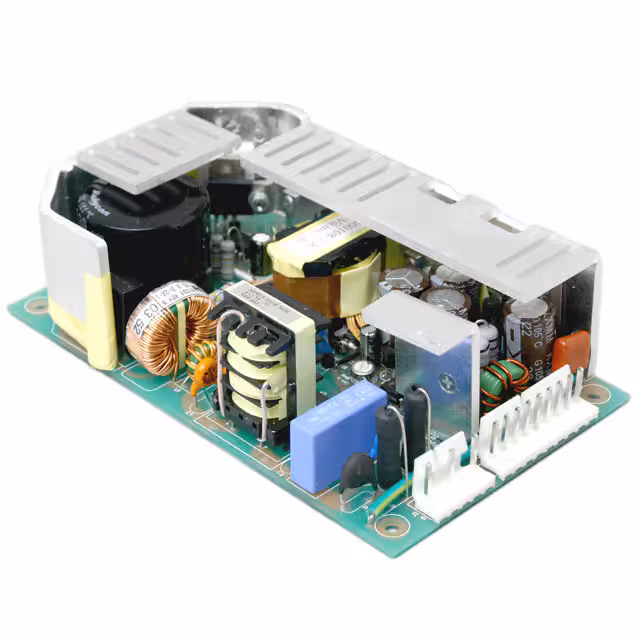

AC/DC CONVERTER 24V 75W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage90 ~ 264 V
Output voltage24 V
Output current2.7 AMax
Power75 WMax
Outputs1
| Power | |
|---|---|
| Current - Output 1 | 2.7 A |
| Power (Watts) | 75W |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 6 | - |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | 0°C~50°C |
| Size / Dimension | 5.75" L x 3.40" W x 1.66" H (146.1mm x 86.4mm x 42.2mm) |
| Other | |
| Applications | Medical |
| Approval Agency | CE |
| Efficiency | 80% |
| Features | Universal Input |
| Mfr | Inventus Power |
| Minimum Load Required | - |
| Number of Outputs | 1 |
| Product Status | Obsolete |
| Series | MSM75 (75W) |
| Type | Open Frame |
