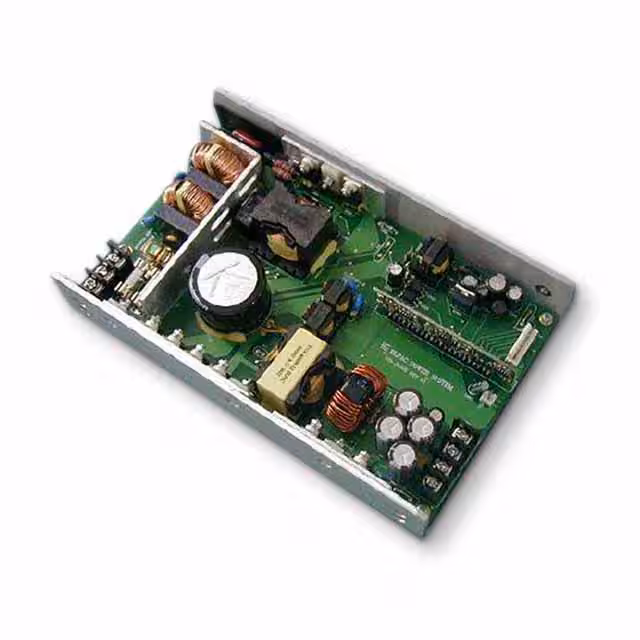

AC/DC CONVERTER 24V 250W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage85 ~ 264 V
Output voltage24 V
Output current10.5 AMax
Power250 WMax
Outputs1
| Power | |
|---|---|
| Current - Output 1 | 10.5 A |
| Power (Watts) | 250W (350W Forced Air) |
| Voltage - Input | 85 ~ 264 VAC |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 6 | - |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | 0°C~70°C(WithDerating) |
| Package | Bulk |
| Size / Dimension | 8.00" L x 5.00" W x 1.50" H (203.2mm x 127.0mm x 38.1mm) |
| Other | |
| Applications | Medical |
| Approval Agency | CB, CE, cTUVus |
| Efficiency | 88% |
| Features | Adjustable Output, PFC, Standby Output, Universal Input |
| Mfr | Inventus Power |
| Minimum Load Required | No |
| Number of Outputs | 1 |
| Product Status | Obsolete |
| Series | MSMP250 (250W) |
| Type | Open Frame |
