MT29F2G08ABAEAH4-IT:E
Micron Technology Inc.United States

MT29F2G08ABAEAH4-IT:E

ActiveMemory48 TSOP type I

IC FLASH 2GBIT PARALLEL 63VFBGA

2Gb x8 NAND Flash memory, 2.7V-3.6V supply, 48-pin TSOP I package, supports automated program and erase, features hardware write protection.Checked against the datasheet

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

Memory typeNAND Flash
Memory size2 Gbit
InterfaceParallel
Supply voltage2.7 ~ 3.6 V

Datasheet-verified parameters

25 items
ParameterValue and test conditionsSource
Memory TypeNAND Flash Memory
Capacity2Gb
Bus Widthx8
VCC Supply VoltageMin: 2.7V, Typ: 3.3V, Max: 3.6V
Package48 TSOP type I (lead-free)
Operating TemperatureCommercial: 0°C to +70°C; Extended: -40°C to +85°C
GradeCommercial / Extended
Recommended Operating ConditionsVcc: 2.7V-3.6V; TA: 0°C to +70°C (Commercial) or -40°C to +85°C (Extended)
Absolute Maximum RatingsVIN: -0.6V to +4.6V; TSTG: -65°C to +150°C; Short circuit output current: 5mA
Random Read Time25µs
Sequential Read Time30ns (3V x8 only)
Page Program TimeTyp: 300µs, Max: 700µs
Block Erase TimeTyp: 2ms, Max: 3ms
Endurance100,000 PROGRAM/ERASE cycles
Data Retention10 years
Page Size2,112 bytes (2,048 + 64 bytes)
Block Size64 pages (128K + 4K bytes)
Number of Blocks2,048 blocks
Input CapacitanceMax: 10pF (TC=25°C, f=1MHz, VIN=0V)
Input/Output CapacitanceMax: 10pF (TC=25°C, f=1MHz, VIN=0V)
Write Cycle TimeMin: 30ns (x8)
WE# Pulse WidthMin: 15ns (x8)
CE# Setup TimeMin: 15ns (x8)
Data Setup TimeMin: 10ns (x8)
Data Hold TimeMin: 5ns (x8)
All parameters (18)ExpandCollapse
Power
Voltage - Supply2.7V ~ 3.6V
Environment and package
Memory Size2Gbit
Mounting TypeSurface Mount
Operating Temperature-40°C ~ 85°C (TA)
PackageTray
Package / Case63-VFBGA
Supplier Device Package63-VFBGA (9x11)
Other
Base Product NumberMT29F2G08
DigiKey ProgrammableVerified
Memory FormatFLASH
Memory InterfaceParallel
Memory Organization256M x 8
Memory TypeNon-Volatile
MfrMicron Technology Inc.
Product StatusActive
Series-
TechnologyFLASH - NAND
Write Cycle Time - Word, Page-

Pinout and package

Figure 4: Pin Assignment (Top …
Figure 4: Pin Assignment (Top …

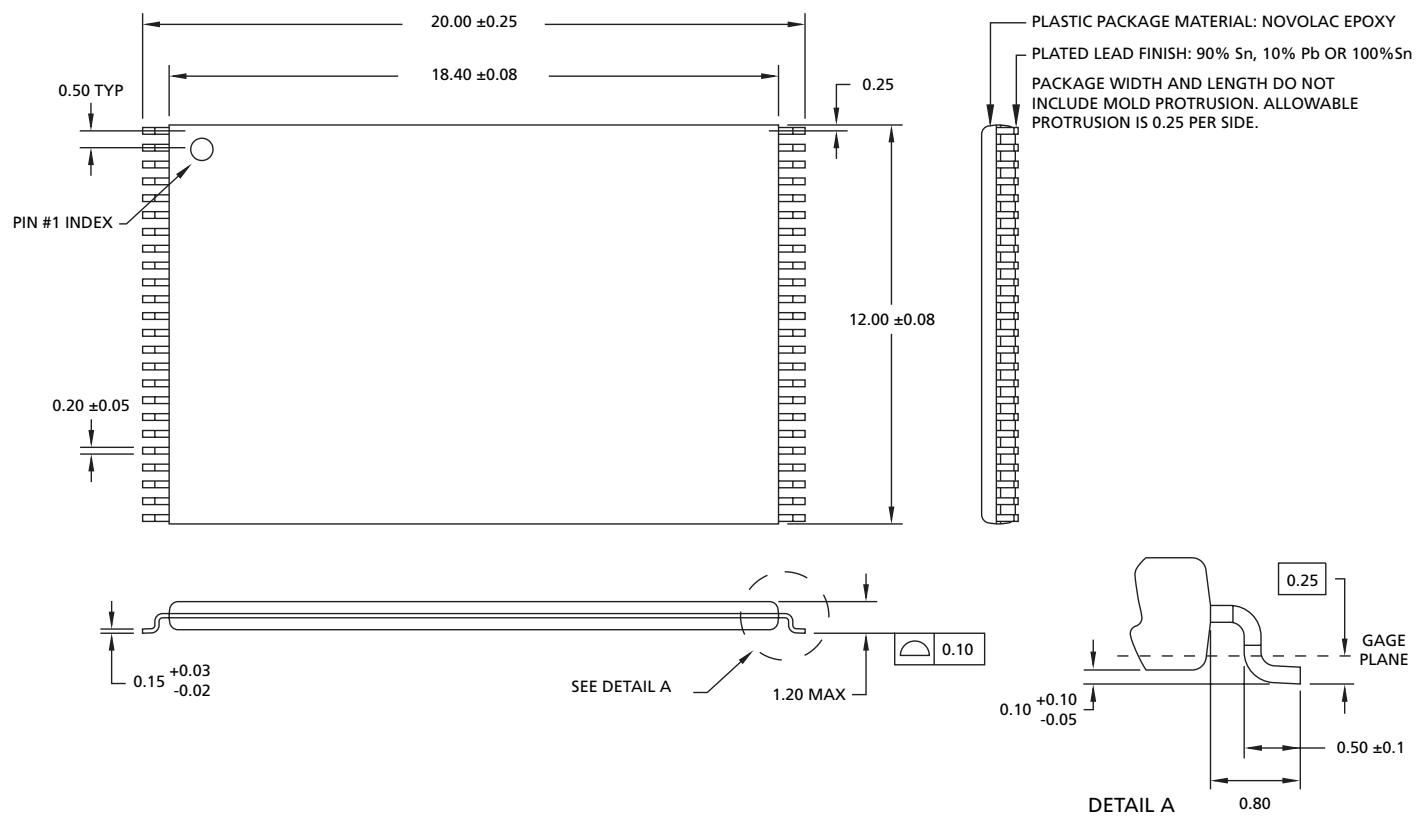

Package: 48 TSOP type I (lead-free)
PinNameFunctionSource
1DNU(Do Not Use)
2DNU(Do Not Use)
3DNU(Do Not Use)
4DNU(Do Not Use)
5DNU(Do Not Use)
6DNU(Do Not Use)
7DNU(Do Not Use)
8DNU(Do Not Use)
9DNU(Do Not Use)
10DNU(Do Not Use)
11DNU(Do Not Use)
12DNU(Do Not Use)
13DNU(Do Not Use)
14DNU(Do Not Use)
15DNU(Do Not Use)
16DNU(Do Not Use)
17DNU(Do Not Use)
18DNU(Do Not Use)
19DNU(Do Not Use)
20DNU(Do Not Use)
21DNU(Do Not Use)
22DNU(Do Not Use)
23DNU(Do Not Use)
24DNU(Do Not Use)
25DNU(Do Not Use)
26DNU(Do Not Use)
27DNU(Do Not Use)
28DNU(Do Not Use)
29DNU(Do Not Use)
30DNU(Do Not Use)
31DNU(Do Not Use)
32DNU(Do Not Use)
33DNU(Do Not Use)
34DNU(Do Not Use)
35DNU(Do Not Use)
36DNU(Do Not Use)
37DNU(Do Not Use)
38DNU(Do Not Use)
39DNU(Do Not Use)
40DNU(Do Not Use)
41DNU(Do Not Use)
42DNU(Do Not Use)
43DNU(Do Not Use)
44DNU(Do Not Use)
45DNU(Do Not Use)
46DNU(Do Not Use)
47DNU(Do Not Use)
48DNU(Do Not Use)

Documents

DatasheetDatasheet · 994.3 KB · 2026-10-29
Open document center

Datasheet-verified content is extracted by AI from the manufacturer datasheet. Click a page number to view the original.
