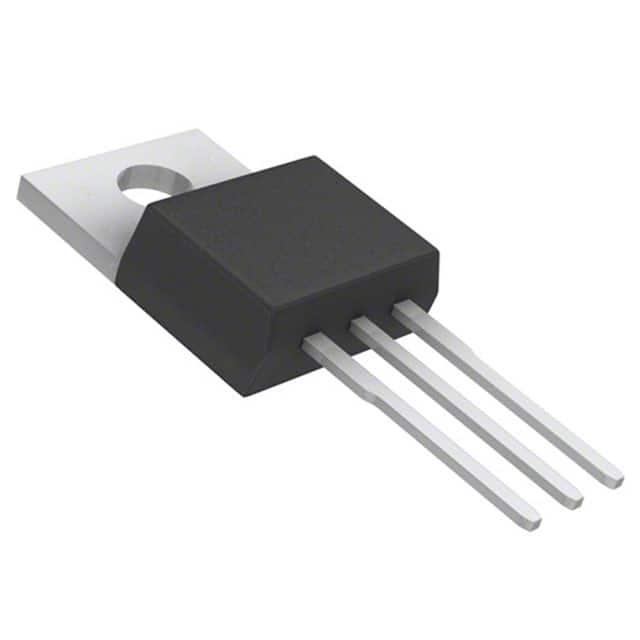

FAST DIODE 400V 10A TO-220AB
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Average Rectified (Io) (per Diode) | 10A |
| Current - Reverse Leakage @ Vr | 5 µA @ 400 V |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 5 A |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature - Junction | -55°C~150°C |
| Package | Tube |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220AB |
| Other | |
| Diode Configuration | 1 Pair Common Cathode |
| Diode Type | Standard |
| Mfr | Yangzhou Yangjie Electronic Technology Co.,Ltd |
| Product Status | Active |
| Reverse Recovery Time (trr) | 35 ns |
| Series | - |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
