MDDGermany
Diodes 二极管 · ultra fast recovery rectifiers
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Max.Aver. Fwd.Current l(AV) | 15 |
| Max.Fwd.Voltage TA=25℃ l F (A) | 20 |
| Max.Fwd.Voltage TA=25℃ V F (V) | 1.3 |
| Maximum Reverse Current TA=25℃ I R (μA) | 10 |
| Max.Reverse Voltage V RRM (V) | 400 |
| Peak Fwd. Surge CurrentT=8.3ms I FSM (A) | 150 |
| Environment and package | |
| Junction Temperature | 175℃ |
| 封装类型 | TO-220AC |
| Other | |
| Maximum Recovery Time Trr（ns） | 35 |
| 数量 函数 | Single |

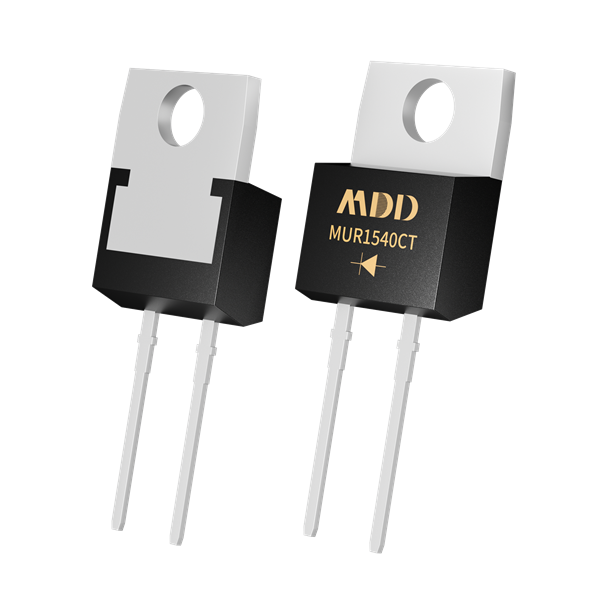

| 零件编号 | MUR1540CT |
