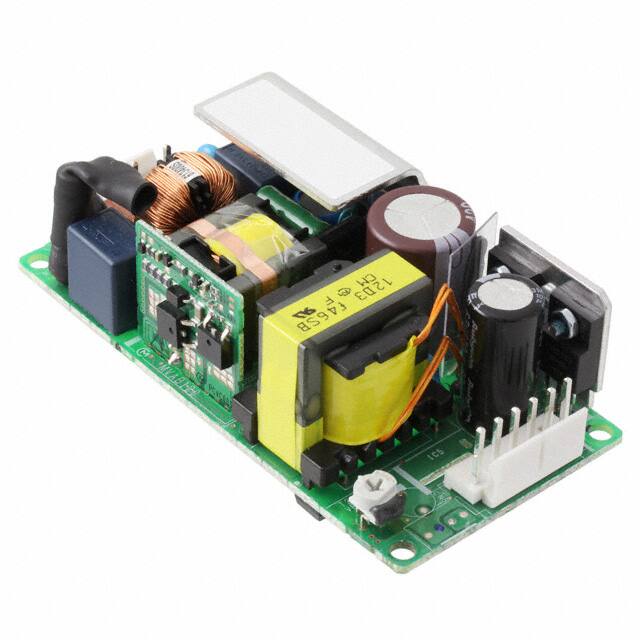

AC/DC CONVERTER 48V 75W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage90 ~ 264 V
Output voltage48 V
Output current2.5 AMax
Power75 WMax
Outputs1
| Power | |
|---|---|
| Current - Output 1 | 2.5 A |
| Power (Watts) | 75W (120W Forced Air) |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 6 | - |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -10°C~50°C |
| Package | Box |
| Size / Dimension | 4.00" L x 2.00" W x 1.41" H (101.6mm x 50.8mm x 35.8mm) |
| Other | |
| Applications | Medical |
| Approval Agency | CB, CE, cURus, DEMKO |
| Base Product Number | MVAB120 |
| Efficiency | 91% |
| Features | PFC, Universal Input |
| Mfr | Murata Power Solutions Inc. |
| Minimum Load Required | - |
| Number of Outputs | 1 |
| Product Status | Obsolete |
| Series | MVAB120 (120W) |
| Type | Open Frame |
Documents
No documents are linked to this part yet.
