NIC Components CorpUnited States

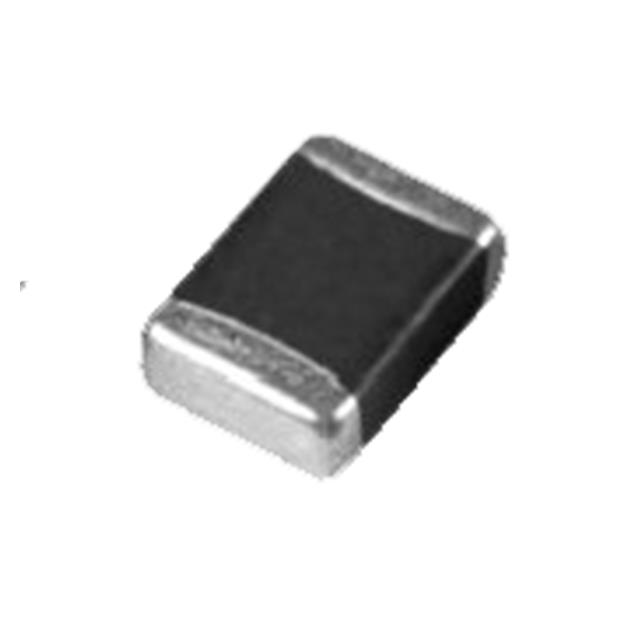

NCB-H0805A221TR300F
Ferrite Beads and ChipsFERRITE BEAD SMT 0805220 @ 100MH
All alternatives
View full reportTechnical parameters
Key specs
Impedance220 Ω100 MHz
Current rating3 AMax
DC resistance40 mΩMax
| Power | |
|---|---|
| Current Rating (Max) | 3A |
| AC and DC characteristics | |
| Impedance @ Frequency | 220 Ohms @ 100 MHz |
| Environment and package | |
| Height (Max) | 0.043" (1.10mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Other | |
| DC Resistance (DCR) (Max) | 40mOhm |
| Features | - |
| Filter Type | Power Line |
| Manufacturer | NIC Components Corp |
| Number of Lines | 1 |
| Packaging | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Part Status | Active |
| Ratings | - |
| Series | NCB-H |
Documents
No documents are linked to this part yet.
