NCV21804 - PRECISION OP AMPLIFIE
All alternatives
View full reportTechnical parameters
Key specs
Supply voltage1.8 ~ 5.5 V
Gain bandwidth product1.5 MHzTyp
Input offset voltage2 µVTyp
Quiescent current75 µATyp
Channels4
| Power | |
|---|---|
| Current - Input Bias | 60 pA |
| Current - Output / Channel | 38 mA |
| Current - Supply | 75µA (x4 Channels) |
| Voltage - Supply Span (Max) | 5.5 V |
| Voltage - Supply Span (Min) | 1.8 V |
| AC and DC characteristics | |
| Gain Bandwidth Product | 1.5 MHz |
| Slew Rate | 0.7V/µs |
| Voltage - Input Offset | 2 µV |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~150°C(TA) |
| Package | Tape & Reel (TR); Cut Tape (CT) |

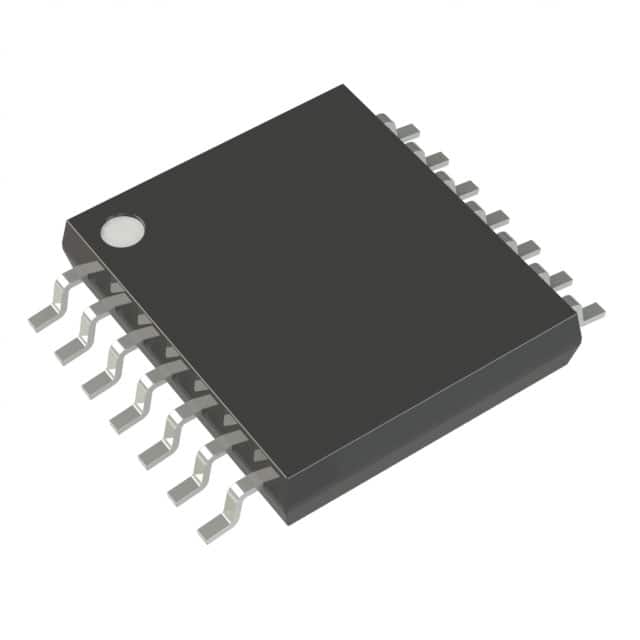

| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 14-TSSOP |
| Other | |
| Amplifier Type | General Purpose |
| Mfr | onsemi |
| Number of Circuits | 4 |
| Output Type | - |
| Product Status | Active |
| Series | - |
