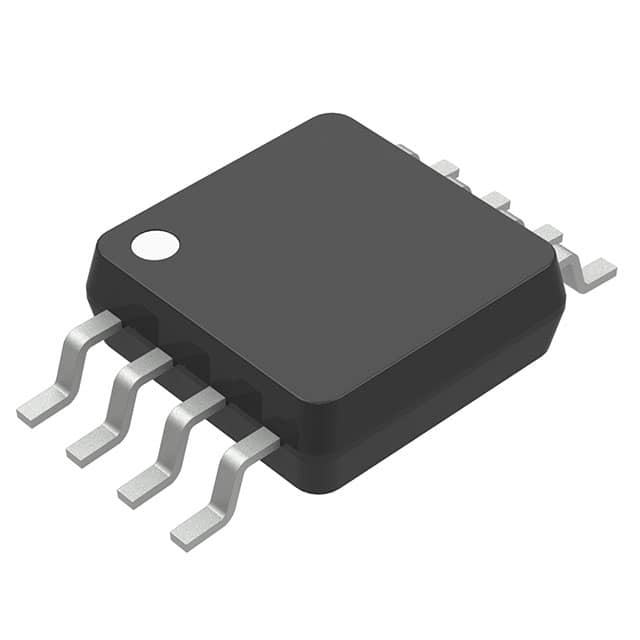

IC OPAMP GP 2 CIRCUIT 8MSOP
All alternatives
View full reportTechnical parameters
Key specs
Supply voltage2.7 ~ 36 V
Gain bandwidth product3 MHzTyp
Input offset voltage500 µVTyp
Quiescent current465 µATyp
Channels2
| Power | |
|---|---|
| Current - Input Bias | 5 pA |
| Current - Output / Channel | 65 mA |
| Current - Supply | 465µA (x2 Channels) |
| Voltage - Supply Span (Max) | 36 V |
| Voltage - Supply Span (Min) | 2.7 V |
| AC and DC characteristics | |
| Gain Bandwidth Product | 3 MHz |
| Slew Rate | 2.8V/µs |
| Voltage - Input Offset | 500 µV |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C(TA) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
| Other | |
| Amplifier Type | General Purpose |
| Base Product Number | NCV272 |
| Mfr | onsemi |
| Number of Circuits | 2 |
| Output Type | Rail-to-Rail |
| Product Status | Active |
| Series | Automotive, AEC-Q100 |
