onsemiUnited States

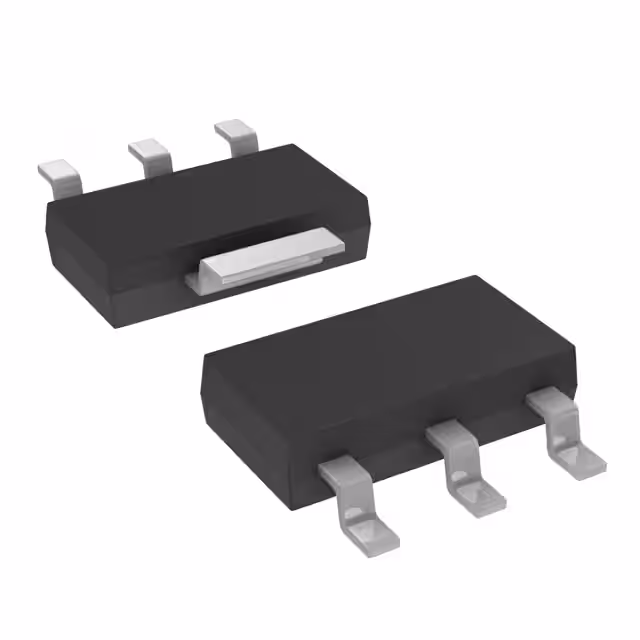

IC REG LINEAR 3.3V 300MA SOT223
All alternatives
View full reportTechnical parameters
Key specs
Output voltage3.3 V
Output current300 mAMax
Input voltage≤ 13 V
Dropout voltage500 mVMax · 300mA
Quiescent current200 µATyp
| Power | |
|---|---|
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 200 µA |
| Voltage Dropout (Max) | 0.5V @ 300mA |
| Voltage - Input (Max) | 13V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| AC and DC characteristics | |
| PSRR | 75dB (120Hz) |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223 (TO-261) |
| Other | |
| Base Product Number | NCV33375 |
| Control Features | Enable |
| Mfr | onsemi |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Type | Fixed |
| Product Status | Active |
| Protection Features | Over Current, Over Temperature |
| Series | Automotive, AEC-Q100 |
