onsemiUnited States

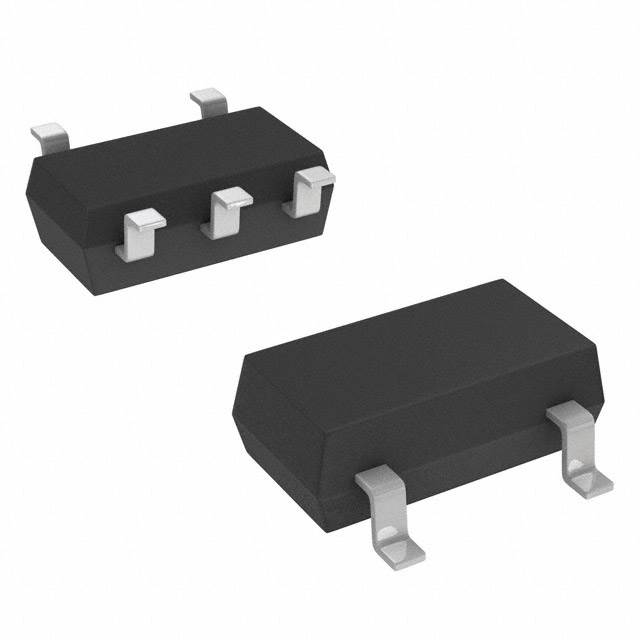

IC OPAMP ZERO-DRIFT 1 CIRC SC88A
All alternatives
View full reportTechnical parameters
Key specs
Supply voltage1.8 ~ 5.5 V
Gain bandwidth product350 kHzTyp
Input offset voltage6 µVTyp
Quiescent current28 µATyp
Channels1
| Power | |
|---|---|
| Current - Input Bias | 60 pA |
| Current - Output / Channel | 11 mA |
| Current - Supply | 28µA |
| Voltage - Supply Span (Max) | 5.5 V |
| Voltage - Supply Span (Min) | 1.8 V |
| AC and DC characteristics | |
| -3db Bandwidth | 60 kHz |
| Gain Bandwidth Product | 350 kHz |
| Slew Rate | 0.15V/µs |
| Voltage - Input Offset | 6 µV |
| Environment and package | |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Qualification | AEC-Q101 |
| Supplier Device Package | SC-88A (SC-70-5/SOT-353) |
| Other | |
| Amplifier Type | Zero-Drift |
| Base Product Number | NCV333 |
| Mfr | onsemi |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Product Status | Active |
| Series | - |
