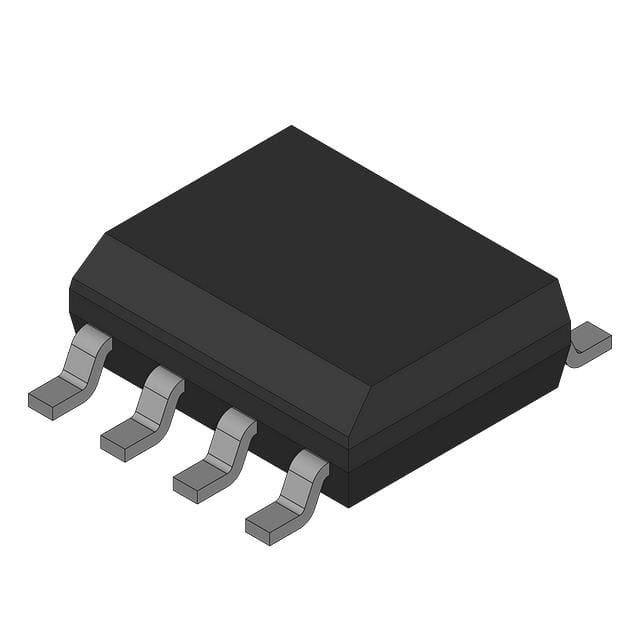

NE555D
Fairchild SemiconductorUnited States

NE555D

ObsoleteProgrammable Timers and Oscillators

1 FUNC, BIPOLAR, PDSO8

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Current - Supply10 mA
Voltage - Supply4.5V ~ 16V
AC and DC characteristics
Frequency500kHz
Environment and package
Mounting TypeSurface Mount
Operating Temperature0°C~70°C
PackageTube
Package / Case8-SOIC (0.154", 3.90mm Width)
Supplier Device Package8-SOIC
Other
Count-
MfrFairchild Semiconductor
Product StatusObsolete
Series-
Type555 Type, Timer/Oscillator (Single)

Documents

No documents are linked to this part yet.
