Murata ElectronicsJapan

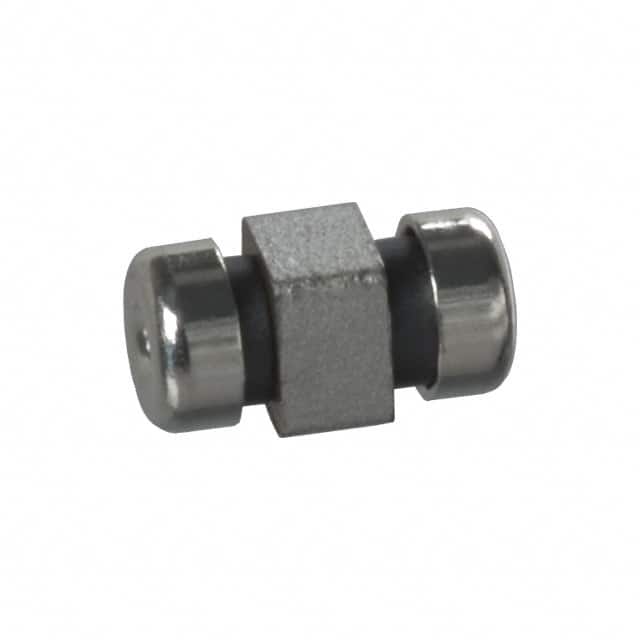

FILTER LC(T) 2200PF SMD
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current | 6 A |
| Number of Channels | 1 |
| Resistance - Channel (Ohms) | - |
| Voltage - Rated | 25V |
| AC and DC characteristics | |
| Center / Cutoff Frequency | - |
| Environment and package | |
| Height | 0.069" (1.75mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 1206 (3216 Metric), 3 PC Pad |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Other | |
| Applications | General Purpose |
| Attenuation Value | - |
| Base Product Number | NFE31PT |
| ESD Protection | No |
| Filter Order | 3rd |
| Mfr | Murata Electronics |
| Product Status | Active |
| Series | EMIFIL®, NFE31 |
| Technology | LC (T-Type) |
| Type | Low Pass |
| Values | C = 2200pF |
