onsemiUnited States

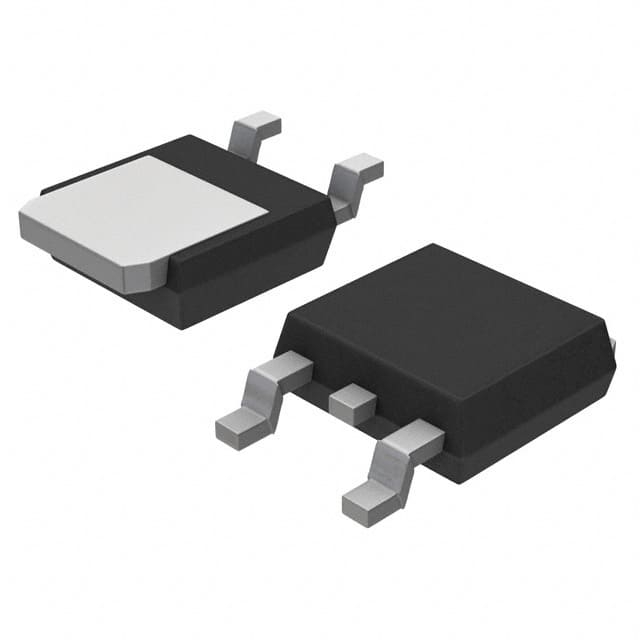

TRANS NPN 80V 8A DPAK
All alternatives
View full reportTechnical parameters
Key specs
TypeNPN
Collector-emitter voltage80 V
Collector current8 AMax
DC current gain602A
Power1.75 WMax
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 1µA |
| Current - Collector (Ic) (Max) | 8 A |
| Power - Max | 1.75 W |
| Voltage - Collector Emitter Breakdown (Max) | 80 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 2A, 1V |
| Frequency - Transition | 85MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | DPAK |
| Other | |
| Base Product Number | NJVMJD44 |
| Mfr | onsemi |
| Product Status | Active |
| Series | Automotive, AEC-Q101 |
| Transistor Type | NPN |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 400mA, 8A |
