onsemiUnited States

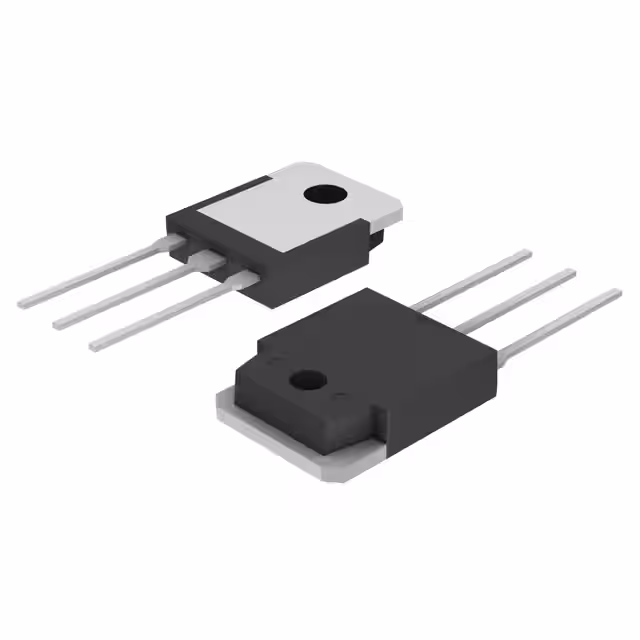

TRANS NPN 250V 15A TO3P-3L
All alternatives
View full reportTechnical parameters
Key specs
TypeNPN
Collector-emitter voltage250 V
Collector current15 AMax
DC current gain753A
Power150 WMax
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 10µA (ICBO) |
| Current - Collector (Ic) (Max) | 15 A |
| Power - Max | 150 W |
| Voltage - Collector Emitter Breakdown (Max) | 250 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 75 @ 3A, 5V |
| Frequency - Transition | 30MHz |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -65°C~150°C(TJ) |
| Package | Tube |
| Package / Case | TO-3P-3, SC-65-3 |
| Supplier Device Package | TO-3P-3L |
| Other | |
| Base Product Number | NJW0281 |
| Mfr | onsemi |
| Product Status | Active |
| Series | - |
| Transistor Type | NPN |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 500mA, 5A |
