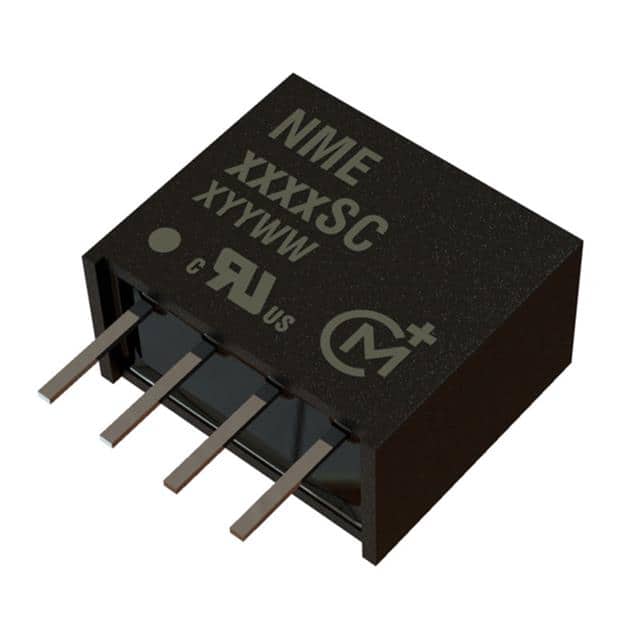

DC DC CONVERTER 15V 1W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage10.8 ~ 13.2 V
Output voltage15 V
Output current66 mAMax
Power1 WMax
IsolationIsolated
| Power | |
|---|---|
| Current - Output (Max) | 66mA |
| Power (Watts) | 1 W |
| Voltage - Input (Max) | 13.2V |
| Voltage - Input (Min) | 10.8V |
| Voltage - Isolation | 1 kV |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~85°C |
| Package | Tube |
| Package / Case | 4-SIP Module |
| Size / Dimension | 0.45" L x 0.24" W x 0.39" H (11.4mm x 6.1mm x 9.9mm) |
| Other | |
| Applications | ITE (Commercial) |
| Base Product Number | NME12 |
| Control Features | - |
| Efficiency | 75% |
| Features | - |
| Mfr | Murata Power Solutions Inc. |
| Number of Outputs | 1 |
| Product Status | Active |
| Series | NME (1W) |
| Type | Isolated Module |
