IgnionSpain

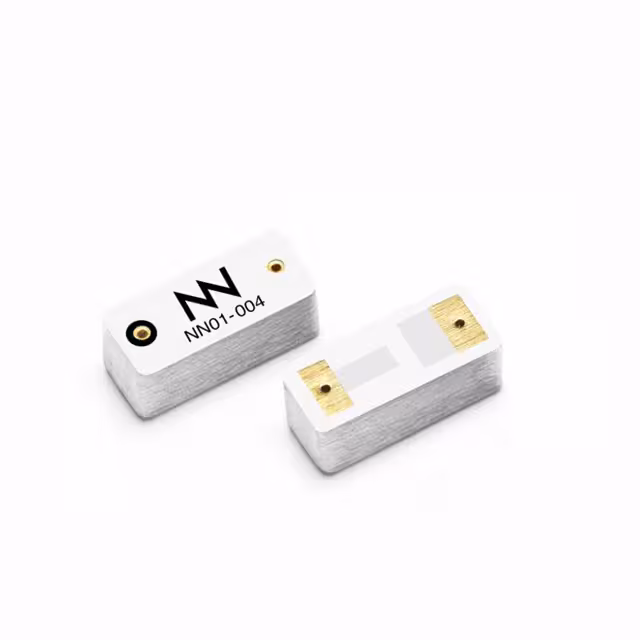

COMPACT DUAL-BAND RX - 004
All alternatives
View full reportTechnical parameters
| AC and DC characteristics | |
|---|---|
| Frequency (Center/Band) | 2.45GHz, 5.3875GHz |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency Range | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.875GHz |
| Gain | 1.5dBi, 4.7dBi |
| Environment and package | |
| Height (Max) | 0.079" (2.00mm) |
| Mounting Type | Surface Mount |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Other | |
| Antenna Type | Chip |
| Applications | 802.11a/b/g/n, WLAN |
| Base Product Number | NN01 |
| Features | - |
| Ingress Protection | - |
| Mfr | Ignion |
| Number of Bands | 2 |
| Product Status | Active |
| Return Loss | - |
| RF Family/Standard | WiFi |
| Series | Compact Dual-band Reach Xtend™ |
| Termination | Solder |
| VSWR | 2 |
