onsemiUnited States
MOSFET N-CH 20V 915MA SC75
All alternatives
View full reportTechnical parameters
Key specs
ChannelN-channel
Drain-source voltage20 V
Continuous drain current915 mA
On-resistance230 mΩMax · 600mA
Gate threshold voltage1.1 VMax · 250μA
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 915mA (Ta) |
| Drain to Source Voltage (Vdss) | 20 V |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
| Power Dissipation (Max) | 300mW (Tj) |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR) |

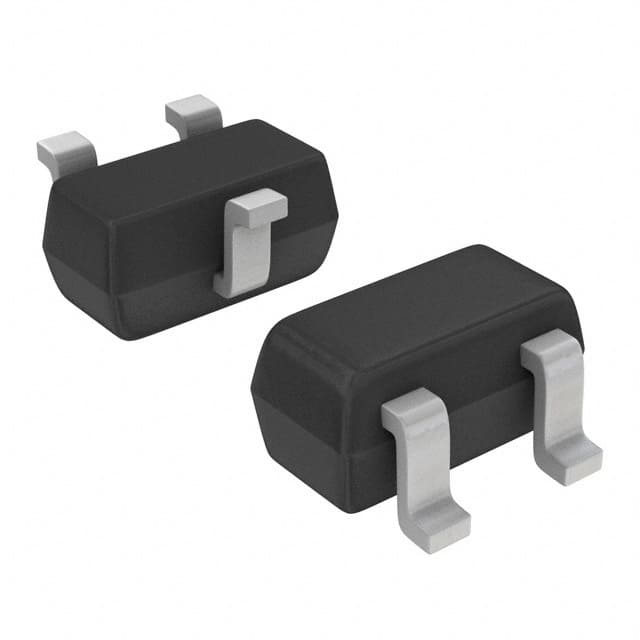

| Package / Case | SC-75, SOT-416 |
| Supplier Device Package | SC-75, SOT-416 |
| Other | |
| Base Product Number | NTA41 |
| FET Feature | - |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 1.82 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 110 pF @ 16 V |
| Mfr | onsemi |
| Product Status | Obsolete |
| Rds On (Max) @ Id, Vgs | 230mOhm @ 600mA, 4.5V |
| Series | - |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | ±6V |
| Vgs(th) (Max) @ Id | 1.1V @ 250µA |
