NTA4153NT1G

ActiveTransistors - FETs, MOSFETs - SingleSC-75 / SOT-416

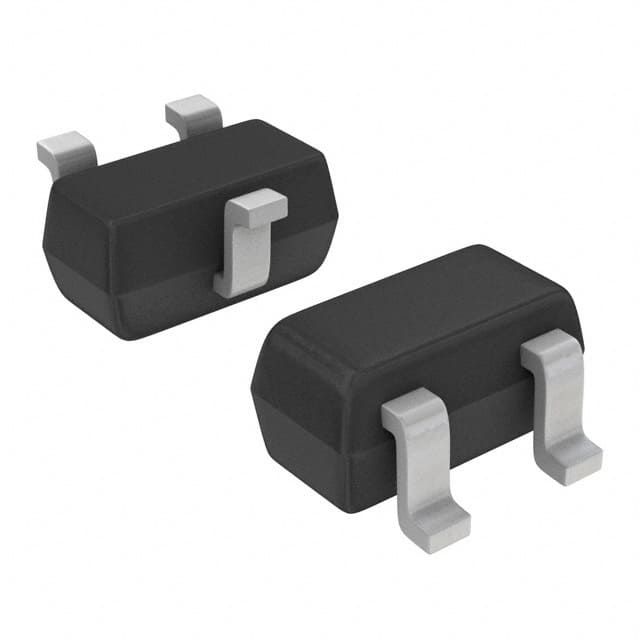

MOSFET N-CH 20V 915MA SC75

The onsemi NTA4153NT1G is a 20V, 915mA N-Channel MOSFET in SC-75/SOT-416 package, featuring low RDS(on) and ESD-protected gate, suitable for load switches and power supply converters.Checked against the datasheet

See alternatives Ask AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

ChannelN-channel

Drain-source voltage20 V

Continuous drain current915 mATA=25°C

On-resistance127 mΩMax · 4.5 V (Typ)

Gate threshold voltage1.1 VMax · 250μA

Datasheet-verified parameters

15 items

Parameter	Value and test conditions	Source
Channel	N-Channel
Drain-to-Source Voltage	20 V
Continuous Drain Current	915 mA @ TA=25°C
On-Resistance	0.127 Ω @ 4.5 V (Typ)
Package	SC-75 / SOT-416 (Pb-Free)
Operating Junction and Storage Temperature	-55 to 150 °C
RoHS	Pb-Free
Gate-to-Source Voltage	±6.0 V
Power Dissipation	300 mW (Steady State)
Pulsed Drain Current	1.3 A @ tp=10 μs
Continuous Source Current (Body Diode)	280 mA
Lead Temperature for Soldering Purposes	260 °C (1/8 inch from case for 10 s)
Junction-to-Ambient Thermal Resistance	416 °C/W (SC-75 / SOT-416)
Forward Diode Voltage	0.67 V (Typ) @ VGS=0 V, IS=200 mA, TJ=25°C
ESD Protected Gate	Yes

All parameters (21)ExpandCollapse

Power
Current - Continuous Drain (Id) @ 25°C	915mA (Ta)
Drain to Source Voltage (Vdss)	20 V
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Power Dissipation (Max)	300mW (Tj)
Environment and package
Mounting Type	Surface Mount
Operating Temperature	-55°C~150°C(TJ)
Package	Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Package / Case	SC-75, SOT-416
Supplier Device Package	SC-75, SOT-416
Other
Base Product Number	NTA4153
FET Feature	-
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	1.82 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds	110 pF @ 16 V
Mfr	onsemi
Product Status	Active
Rds On (Max) @ Id, Vgs	230mOhm @ 600mA, 4.5V
Series	-
Technology	MOSFET (Metal Oxide)
Vgs (Max)	±6V
Vgs(th) (Max) @ Id	1.1V @ 250µA

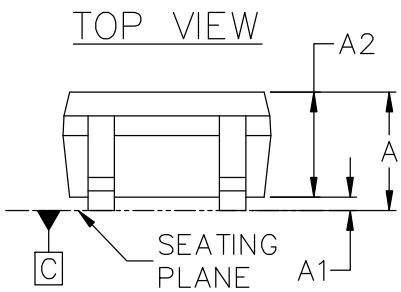

Pinout and package

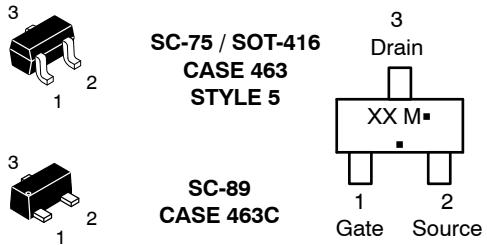

MARKING DIAGRAM & PIN ASSIGNME… — Package: **SC-75 / SOT-416 (Pb-Free)**

Pin	Name	Function	Source
1		Gate
2		Source
3		Drain
