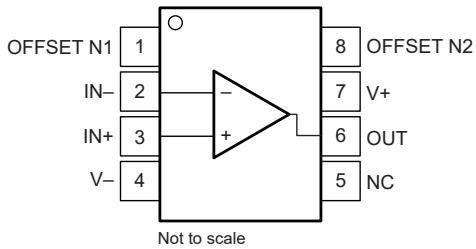

Figure 5-1. D Package, 8-Pin S…

OP07DD

ActiveInstrumentation, OP Amps, Buffer AmpsSOIC

IC OPAMP GP 1 CIRCUIT 8SOIC

OP07DD is a precision operational amplifier in an 8-pin SOIC package, operating from 0 to 70°C, featuring low offset voltage and high common-mode rejection ratio, suitable for precision measurement and signal conditioning.Checked against the datasheet

See alternatives Ask AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

Supply voltage6 ~ 36 V

Gain bandwidth product400 kHzTyp

Input offset voltage250 µVMax

Channels1

Datasheet-verified parameters

22 items

Parameter	Value and test conditions	Source
Supply voltage range	Single supply: 6 V to 36 V; Dual supply: ±3 V to ±18 V
Unity gain bandwidth	Typ 0.4 MHz, Max 0.6 MHz
Input offset voltage	OP07D: Typ ±150 μV (25°C), Max ±250 μV (0°C to 70°C)
Quiescent current	Not explicitly listed as IQ, but Power Dissipation is Typ 80 mW, Max 150 mW (No load, VS=±15V)
Number of channels	1
Package	SOIC (D), 8-Pin
Operating temperature	0°C to 70°C
Grade	Commercial (implied by 0-70C range, no AEC-Q100 mentioned)
RoHS	Yes
Recommended Operating Conditions	VS: 6 V to 36 V (Single), ±3 V to ±18 V (Dual); TA: 0°C to 70°C
Absolute Maximum Ratings	VS: 44 V (Single), ±22 V (Dual); Input Voltage: ±30 V (Diff), ±22 V (Single-ended); TJ: -55°C to 150°C
Input bias current	OP07D: Typ ±12 nA (25°C), Max ±14 nA (0°C to 70°C)
Input offset current	OP07D: Typ ±6 nA (25°C), Max ±8 nA (0°C to 70°C)
Common-mode rejection ratio	OP07D: Typ 94 dB, Max 110 dB (25°C, VCM=±13 V); Typ 94 dB, Max 106 dB (0°C to 70°C)
Open-loop voltage gain	OP07D: Typ 400 V/mV (1.4 V < VO < 11.4 V, RL=500 kΩ)
Slew rate	Typ 0.3 V/μs (VS=5 V, RL=2 kΩ)
Voltage output swing	Typ ±11.5 V, Max ±12.8 V (RL=2 kΩ, VS=±15 V)
Input voltage noise density	Typ 10.5 nV/√Hz (f=10 Hz), 10.2 nV/√Hz (f=100 Hz), 9.8 nV/√Hz (f=1 kHz)
Input resistance	Typ 7 MΩ, Max 33 MΩ
Power supply rejection ratio	Typ 7 μV/V, Max 32 μV/V (VS=±3 V to ±18 V, 25°C); Typ 10 μV/V, Max 51 μV/V (0°C to 70°C)
ESD Ratings	HBM: ±1000 V; CDM: ±1000 V
Storage temperature	-65°C to 150°C

All parameters (19)ExpandCollapse

Power
Current - Input Bias	2 nA
Current - Supply	-
Voltage - Supply Span (Max)	36 V
Voltage - Supply Span (Min)	6 V
AC and DC characteristics
Gain Bandwidth Product	600 kHz
Slew Rate	0.3V/µs
Voltage - Input Offset	60 µV
Environment and package
Mounting Type	Surface Mount
Operating Temperature	0°C~70°C
Package	Tube
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOIC
Other
Amplifier Type	General Purpose
Base Product Number	OP07
Mfr	Texas Instruments
Number of Circuits	1
Output Type	-
Product Status	Active
Series	-

Pinout and package

Pin	Name	Function
1	OFFSET	N1, External input offset voltage adjustment
2		IN-, Inverting input
3		IN+, Noninverting input
4		V-, Negative supply
5		NC, Do not connect
6		OUT, Output
7		V+, Positive supply
8	OFFSET	N2, External input offset voltage adjustment
