Texas InstrumentsUnited States

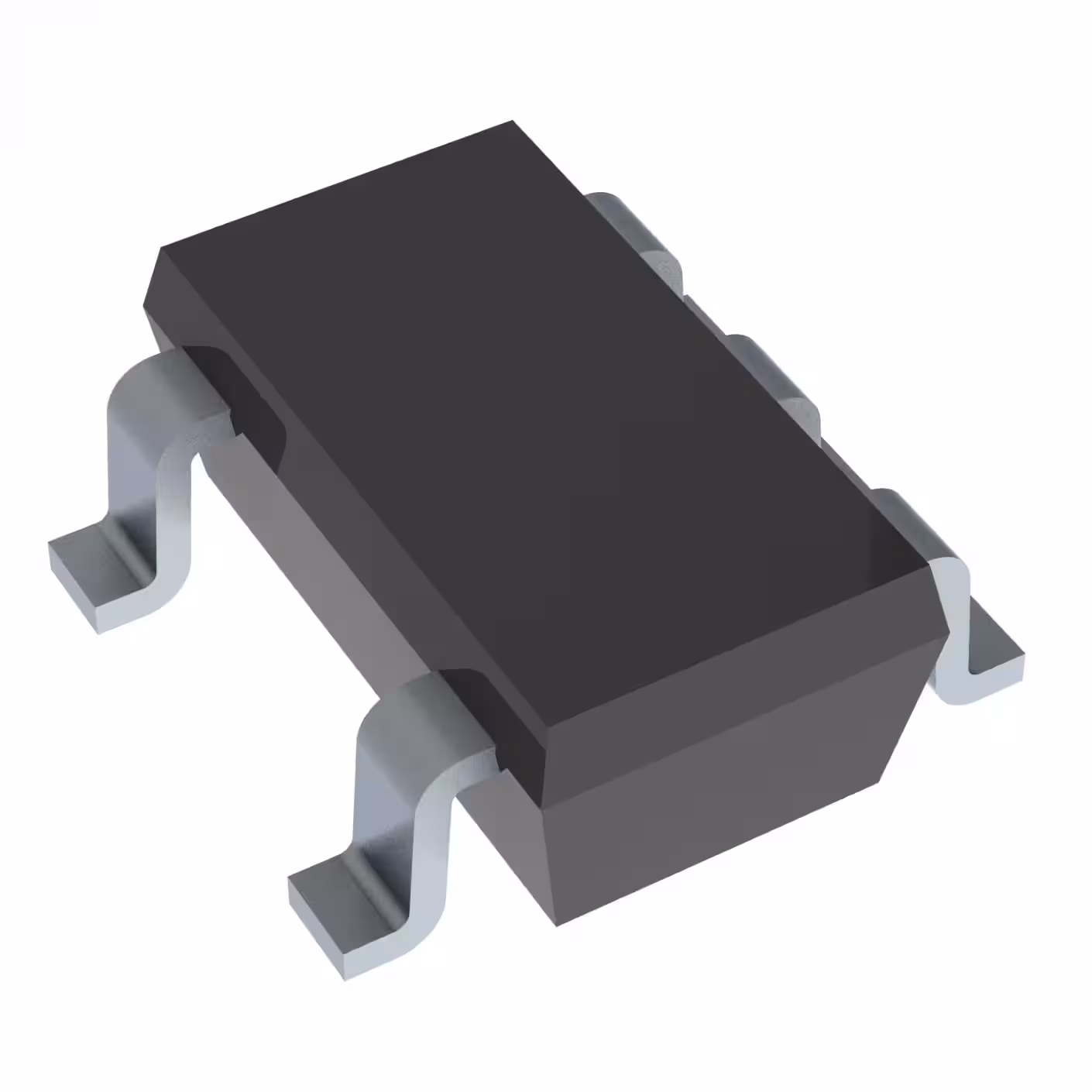

IC OPAMP ZER-DRIFT 1CIRC SOT23-5
All alternatives
View full reportTechnical parameters
Key specs
Supply voltage1.8 ~ 5.5 V
Gain bandwidth product350 kHzTyp
Input offset voltage2 µVTyp
Quiescent current17 µATyp
Channels1
| Power | |
|---|---|
| Current - Input Bias | 70 pA |
| Current - Output / Channel | 5 mA |
| Current - Supply | 17µA |
| Voltage - Supply Span (Max) | 5.5 V |
| Voltage - Supply Span (Min) | 1.8 V |
| AC and DC characteristics | |
| Gain Bandwidth Product | 350 kHz |
| Slew Rate | 0.16V/µs |
| Voltage - Input Offset | 2 µV |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Other | |
| Amplifier Type | Zero-Drift |
| Base Product Number | OPA333 |
| Mfr | Texas Instruments |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Product Status | Discontinued at Digi-Key |
| Series | - |
