Diotec SemiconductorGermany

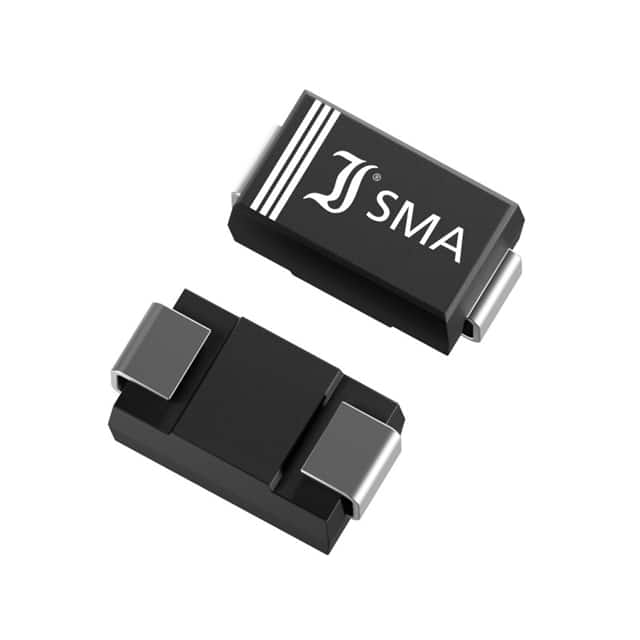

TVS DIODE, DO-214AC/SMA, 396.00V
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage356 V
Breakdown voltage396 V
Clamping voltage631 VMax
Peak pulse power400 W
PolarityUnidirectional
| Power | |
|---|---|
| Current - Peak Pulse (10/1000µs) | 630mA |
| Power Line Protection | No |
| Power - Peak Pulse | 400W |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 396V |
| Voltage - Clamping (Max) @ Ipp | 631V |
| Voltage - Reverse Standoff (Typ) | 356V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -50°C~150°C(TJ) |
| Package | Strip |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | DO-214AC, SMA |
| Other | |
| Applications | General Purpose |
| Mfr | Diotec Semiconductor |
| Product Status | Active |
| Series | - |
| Type | Zener |
