Panjit International Inc.Taiwan, China

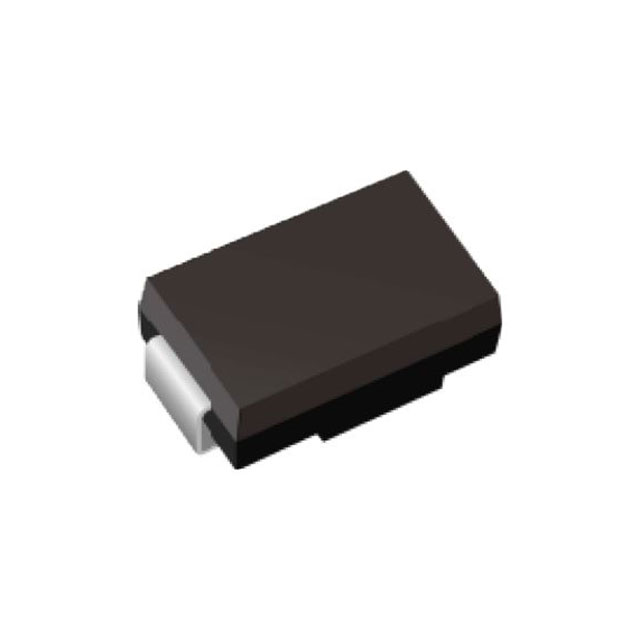

SMA, TVS
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage12 V
Breakdown voltage13.3 V
Clamping voltage19.9 VMax
Peak pulse power400 W
PolarityUnidirectional
| Power | |
|---|---|
| Current - Peak Pulse (10/1000µs) | 20.1A |
| Power Line Protection | No |
| Power - Peak Pulse | 400W |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 13.3V |
| Voltage - Clamping (Max) @ Ipp | 19.9V |
| Voltage - Reverse Standoff (Typ) | 12V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | SMA (DO-214AC) |
| Other | |
| Applications | General Purpose |
| Base Product Number | P4SMAJ12 |
| Mfr | Panjit International Inc. |
| Product Status | Active |
| Series | P4SMAJ |
| Type | Zener |
