Diodes IncorporatedUnited States

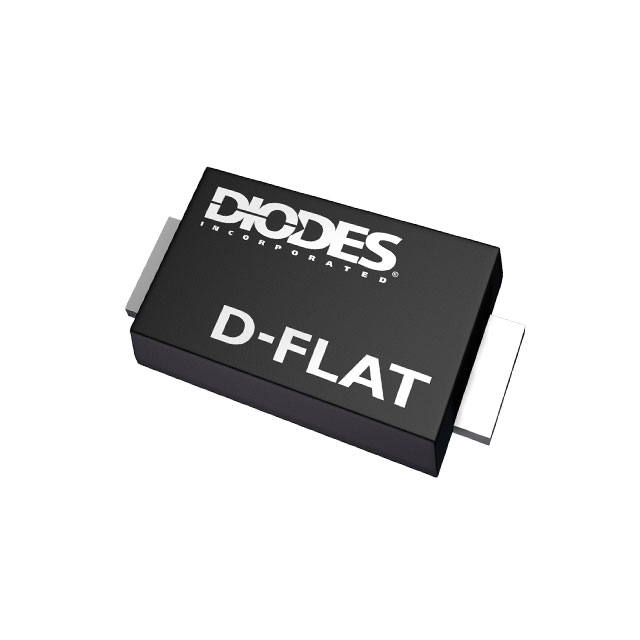

TVS DIODE 22VWM 35.5VC D-FLAT
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage22 V
Breakdown voltage24.4 V
Clamping voltage35.5 VMax
Peak pulse power400 W
PolarityUnidirectional
| Power | |
|---|---|
| Current - Peak Pulse (10/1000µs) | 11.2A |
| Power Line Protection | No |
| Power - Peak Pulse | 400W |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 24.4V |
| Voltage - Clamping (Max) @ Ipp | 35.5V |
| Voltage - Reverse Standoff (Typ) | 22V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Package / Case | 2-SMD, Flat Lead |
| Supplier Device Package | D-Flat |
| Other | |
| Applications | General Purpose |
| Base Product Number | P4SMAJ22 |
| Mfr | Diodes Incorporated |
| Product Status | Active |
| Series | - |
| Type | Zener |
