Diotec SemiconductorGermany
TVSDIODE,SMA,64V,400W,UNI
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage64 V
Breakdown voltage71.1 V
Clamping voltage103 VMax
Peak pulse power400 W
PolarityUnidirectional
| Power | |
|---|---|
| Current - Peak Pulse (10/1000µs) | 3.9A |
| Power Line Protection | No |
| Power - Peak Pulse | 400W |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 71.1V |
| Voltage - Clamping (Max) @ Ipp | 103V |
| Voltage - Reverse Standoff (Typ) | 64V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -50°C~150°C(TJ) |
| Package | Strip |

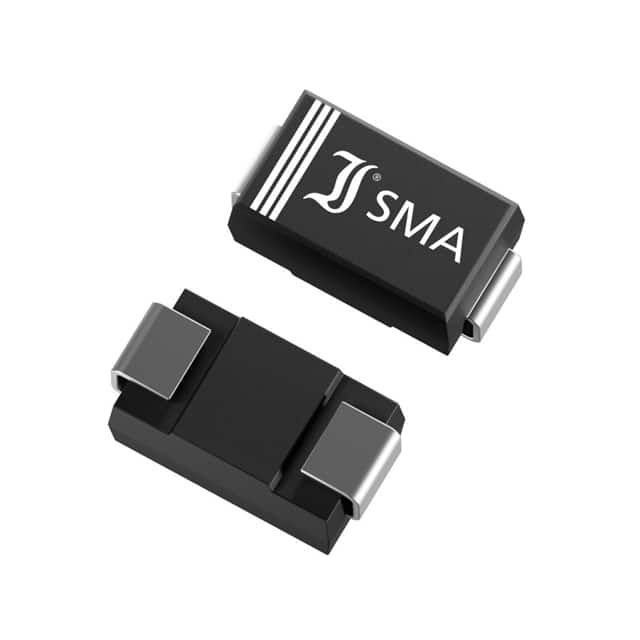

| Package / Case | DO-214AC, SMA |
| Supplier Device Package | SMA/DO-214AC |
| Other | |
| Applications | Automotive |
| Mfr | Diotec Semiconductor |
| Product Status | Active |
| Series | - |
| Type | Zener |
