Taiwan Semiconductor CorporationTaiwan, China

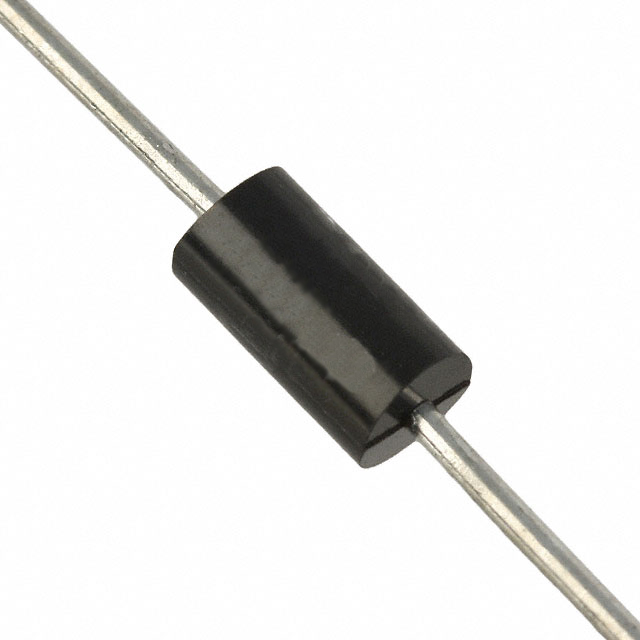

TVS DIODE 25.6VWM 41.4VC DO15
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage25.6 V
Breakdown voltage28.5 V
Clamping voltage41.4 VMax
Peak pulse power600 W
PolarityUnidirectional
| Power | |
|---|---|
| Current - Peak Pulse (10/1000µs) | 14.5A |
| Power Line Protection | No |
| Power - Peak Pulse | 600W |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 28.5V |
| Voltage - Clamping (Max) @ Ipp | 41.4V |
| Voltage - Reverse Standoff (Typ) | 25.6V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | - |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Package / Case | DO-204AC, DO-15, Axial |
| Supplier Device Package | DO-15 |
| Other | |
| Applications | General Purpose |
| Base Product Number | P6KE30 |
| Mfr | Taiwan Semiconductor Corporation |
| Product Status | Active |
| Series | - |
| Type | Zener |
Documents
No documents are linked to this part yet.
