TDK CorporationJapan

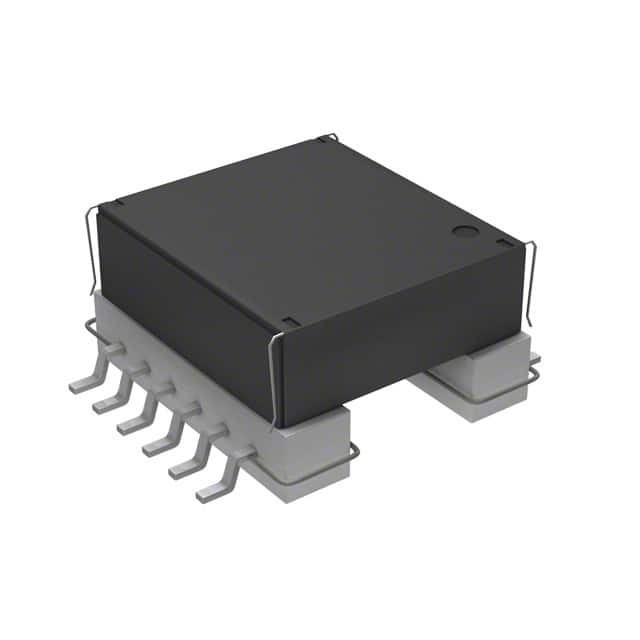

INDUCTOR/XFRMR 9.3UH MULTIWIND
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - Auxiliary | - |
| Voltage - Isolation | 500Vrms |
| Voltage - Primary | - |
| AC and DC characteristics | |
| Frequency | - |
| Inductance @ Frequency | Parallel 9.3µH @ 10kHz, Series 335µH @ 10kHz |
| Environment and package | |
| Height - Seated (Max) | 0.354" (9.00mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tray |
| Size / Dimension | 0.713" L x 0.630" W (18.10mm x 16.00mm) |
| Other | |
| Applications | Capacitor Charger |
| Chipset Manufacturer | - |
| Footprint | 0.713" L x 0.886" W (18.10mm x 22.50mm) |
| Intended Chipset | - |
| Mfr | TDK Corporation |
| Product Status | Obsolete |
| Series | PCA15EFD |
| Type | Configurable (For DC/DC) |
