PCA9555PW
Nexperia USA Inc.Netherlands

PCA9555PW

Active

Low-voltage 16-bit I²C-bus I/O port with interrupt and weak pull-up

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Power
Power dissipation considerationslow
Environment and package
Halogen freeYes

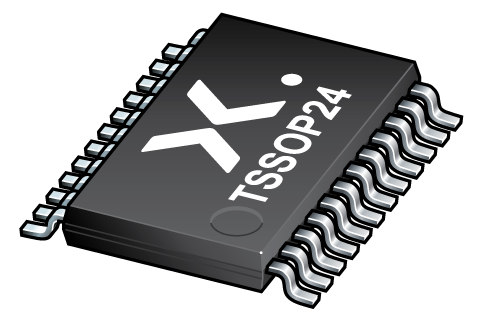

Package nameTSSOP24
RoHSCompliant
Other
Logic switching levelsCMOS
Tamb-40~85
VCC2.3 - 5.5

Documents

DatasheetDatasheet · 416.2 KB · 2026-09-23MarketingMarketing · 6.0 MB · 2026-09-23MarketingMarketing · 1.5 MB · 2026-09-23Package DrawingPackage Drawing · 224.2 KB · 2026-09-23Package DrawingPackage Drawing · 213.6 KB · 2026-09-23Quality & ReliabilityQuality & Reliability · 172.6 KB · 2026-09-23Application NoteApplication Note · 134.5 KB · 2026-09-23Application NoteApplication Note · 87.4 KB · 2026-09-23
