View full reportTechnical parameters
Key specs
Rated current5 A
Rated voltage125 V
Response timeFast
Breaking capacity4.2 ~ 10 kA
| Power | |
|---|---|
| Breaking Capacity @ Rated Voltage | 10kA AC, 4.2kA DC |
| Current Rating (Amps) | 5 A |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 400 V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | - |
| Package | Bulk |

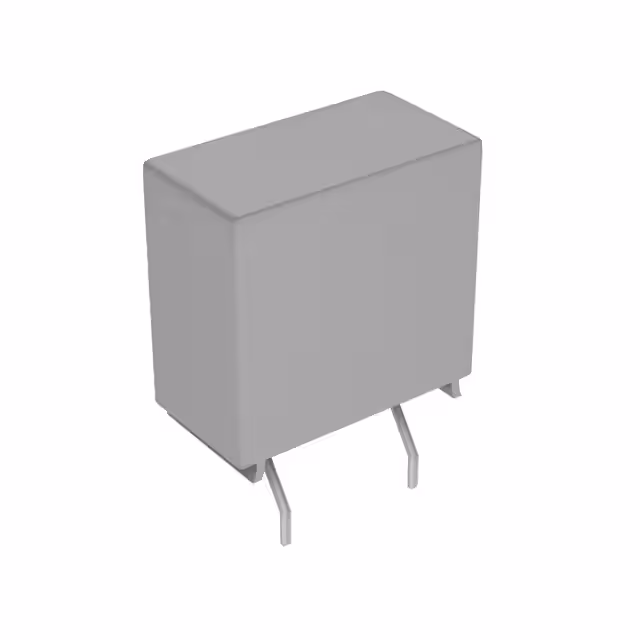

| Package / Case | Radial, Box |
| Size / Dimension | 0.350" L x 0.184" W x 0.345" H (8.89mm x 4.67mm x 8.76mm) |
| Other | |
| Approval Agency | CSA, UL |
| Color | - |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Melting I²t | 5 |
| Mfr | Eaton - Electronics Division |
| Product Status | Active |
| Response Time | Fast Blow |
| Series | PC-Tron® |
Documents
No documents are linked to this part yet.
